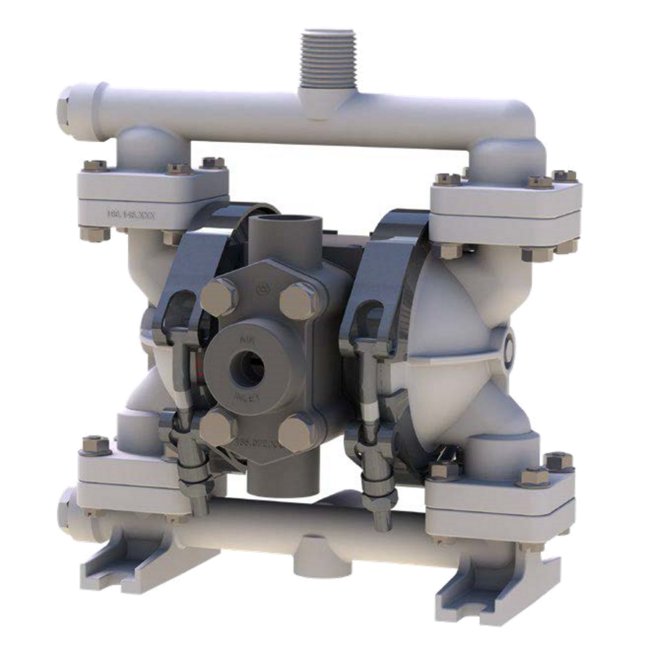

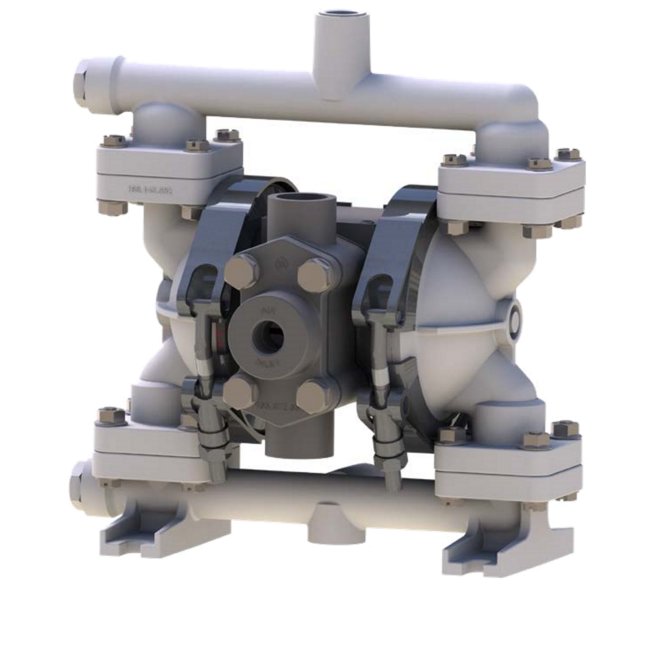

PB1/4-A Non-Metallic Ball Valve Diaphragm Pump
PB1/4-A Non-Metallic Ball Valve Diaphragm Pump
SKU:PRO-169e1e
Durable non-metallic diaphragm pump for corrosive fluids. Solids handling up to 0.03125 inches. Max flow rate: 5 gpm.
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
PB1/4-A Non-Metallic Ball Valve Diaphragm Pump
$499.99
Quantity: 1
Claim Your Seller Account
PB1/4-A Non-Metallic Ball Valve Diaphragm Pump
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The PB1/4-A Non-Metallic Ball Valve Diaphragm Pump is a reliable solution for handling highly corrosive fluids with minimal abrasion. Designed for intermittent usage, this pump features TPE and PTFE construction for enhanced durability. With a solids handling capability of 0.03125 inches, PVDF-Kynar valve seats, and a maximum flow rate of 5 gpm, it meets the demands of various industrial applications. Easily customizable with optional kits for optimized performance.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Curves 0

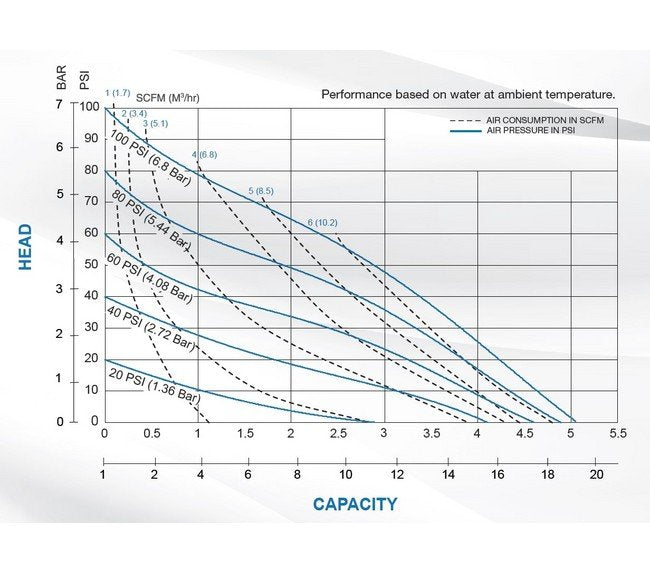

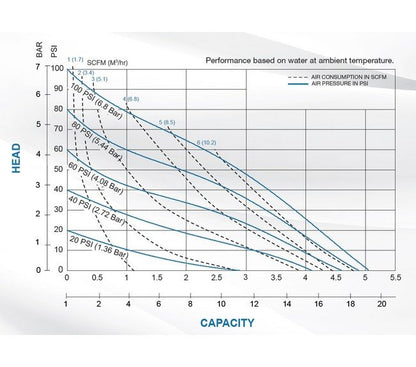

Performance Curves
Dimensions 0

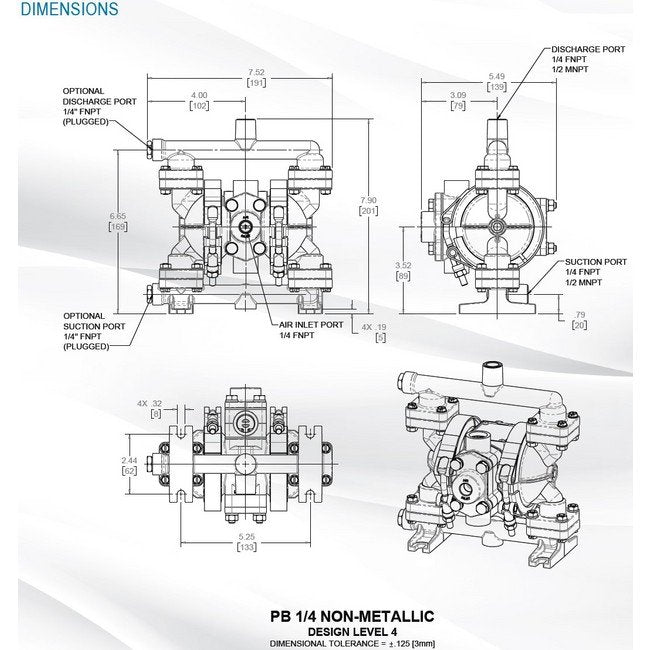

Dimensions
Specifications Check Valve Seat
PVDF - Kynar
Specifications Check Valve Type
Ball
Specifications Customs Code
ECCN Code EAR99
Specifications Discharge Pipe Size External
1/2" NPT
Specifications Discharge Pipe Size Internal
1/4" NPT
Specifications Elastomers
PTFE
Specifications Height
8 in | 200.66 mm
Specifications Inlet Size
0.25 FNPT in | 6 FNPT mm | 0.25" FNPT
Specifications Intake Pipe Size External
1/2" NPT
Specifications Intake Pipe Size Internal
1/4" NPT
Specifications Length
8 in | 0.1910 m | 191.01 mm
Specifications Max Flow Rate
5 gpm | 300.00 gph | 18.93 lpm
Specifications Non Wetted Material
Polypropylene
Specifications Outlet Size
0.25 FNPT in | 6 FNPT mm | 0.25" FNPT
Specifications Sku
WRPB14TU4KSP
Specifications Solids Handling
0.03125 in | 1 mm
Specifications Valve Seat
PVDF - Kynar
Specifications Weight
5 lbs | 2.27 kg
Specifications Wetted Moc
PVDF - Kynar
Specifications Width
5 in | 0.1394 m | 139.45 mm
Category 6
Standard Duty Diaphragm Pumps
