PB1/4 Top Discharge Non-Metallic Ball Valve Pump

Name: PB1/4 Top Discharge Non-Metallic Ball Valve Pump
Brand: Springer Pumps, LLC
SKU: PRO-c4a22c
Price: 399.99 USD
Availability: OutOfStock

SKU:PRO-c4a22c

Durable PB1/4-A Non-Metallic Ball Valve Diaphragm Pump for corrosive fluids with 5 gpm max flow rate.

$399.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The PB1/4-A Non-Metallic Ball Valve Diaphragm Pump is designed for handling highly corrosive fluids, intermittent use, low abrasive fluids, and suspended solids. Constructed with TPE and PTFE components, this pump offers durability and reliability. With a maximum flow rate of 5 gpm and non-wetted materials like polypropylene, it is ideal for standard duty diaphragm pump applications.

Product Specifications

Curves 0

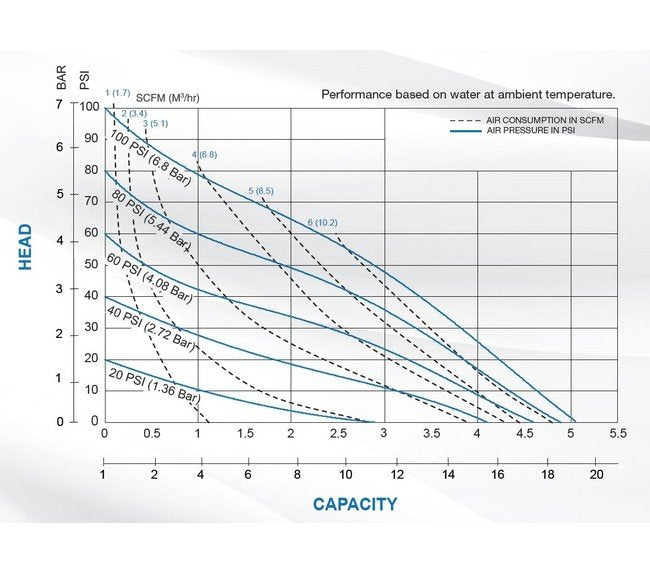

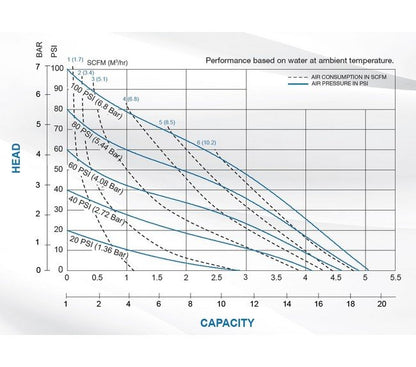

Performance Curves

Dimensions 0

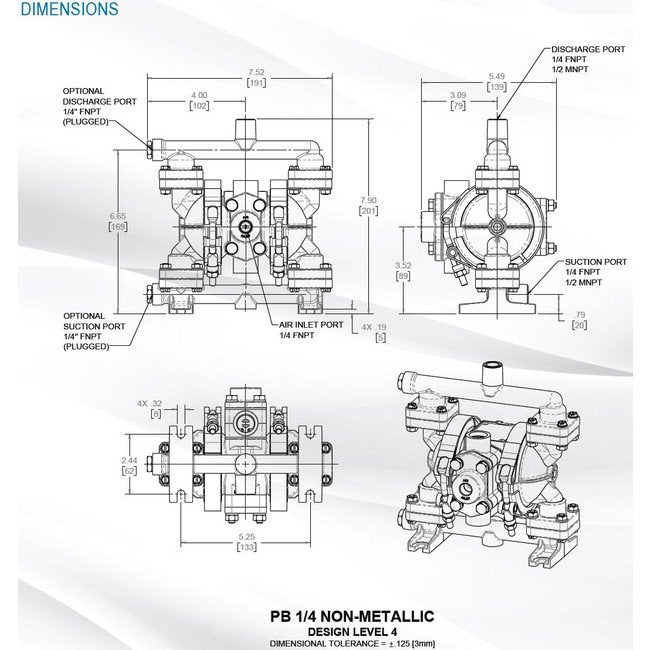

Dimensions

Specifications Check Valve Seat

Acetal

Specifications Check Valve Type

Ball

Specifications Customs Code

ECCN Code EAR99

Specifications Discharge Pipe Size External

1/2" NPT

Specifications Discharge Pipe Size Internal

1/4" NPT

Specifications Elastomers

PTFE

Specifications Height

8 in | 200.66 mm

Specifications Inlet Size

0.25 FNPT in | 6 FNPT mm | 0.25" FNPT

Specifications Intake Pipe Size External

1/2" NPT

Specifications Intake Pipe Size Internal

1/4" NPT

Specifications Length

8 in | 0.1910 m | 191.01 mm

Specifications Max Flow Rate

5 gpm | 300.00 gph | 18.93 lpm

Specifications Non Wetted Material

Polypropylene

Specifications Outlet Size

0.25 FNPT in | 6 FNPT mm | 0.25" FNPT

Specifications Sku

WRPB14TU4CASP

Specifications Solids Handling

0.03125 in | 1 mm

Specifications Valve Seat

Acetal

Specifications Weight

4 lbs | 1.81 kg

Specifications Wetted Moc

Cond AcetAluminum

Specifications Width

5 in | 0.1394 m | 139.45 mm

Category 6

Standard Duty Diaphragm Pumps

PB1/4 Top Discharge Non-Metallic Ball Valve Pump
