PBFC Series 1/4 Inch (in) x 8 Millimeter (mm) Size Female British Standard Pipe Thread (BSPT) Bulkhead Union Fitting
PBFC Series 1/4 Inch (in) x 8 Millimeter (mm) Size Female British Standard Pipe Thread (BSPT) Bulkhead Union Fitting
SKU:PBF-f2fc0b
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
PBFC Series 1/4 Inch (in) x 8 Millimeter (mm) Size Female British Standard Pipe Thread (BSPT) Bulkhead Union Fitting
$49.99
Quantity: 1
Claim Your Seller Account
PBFC Series 1/4 Inch (in) x 8 Millimeter (mm) Size Female British Standard Pipe Thread (BSPT) Bulkhead Union Fitting
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

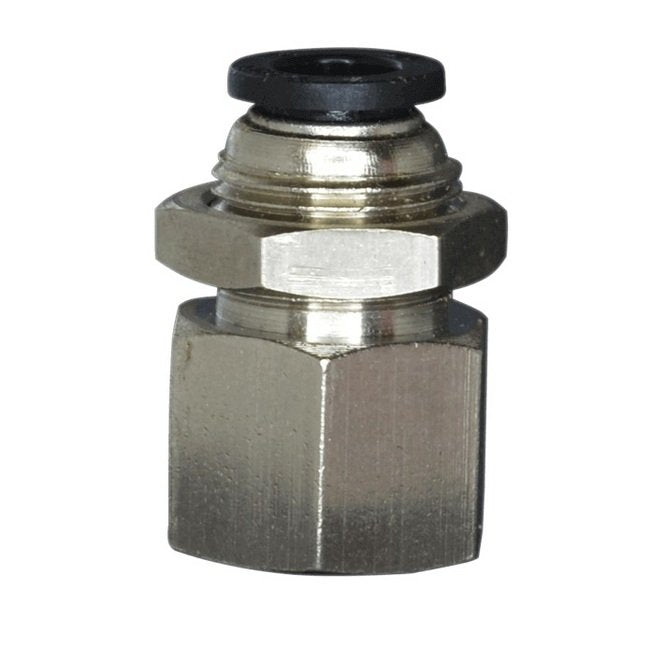

Push-to-connect female bulkhead union fitting with female NPT and BSPT threads. It is made of nickel-plated brass with PBT resin. The working pressure is 150 psi and the temperature range is 32 ºF to 140 ºF. It can be used with compressed air and inert gases.
Product Specifications
Note
If you do not see exactly what you are looking for, please contact our sales department.
Technical Specs Connection Type
Push-to-Connect
Technical Specs Material
Nickel-Plated Brass
Technical Specs Operating Pressure
150 psi
Technical Specs Resin
Polybutylene Terephthalate (PBT)
Technical Specs Series
PBFC
Technical Specs Temperature Range
32 to 140 ºF
Technical Specs Thread Size
1/4 in. x 8 mm
Technical Specs Thread Type
Female British Standard Pipe Thread (BSPT)
