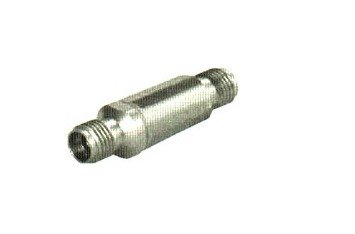

PC 3.5 Calibrated Straight Adaptors (Female-Female)
PC 3.5 Calibrated Straight Adaptors (Female-Female)
SKU:PC3-7a1596
Precision-calibrated PC 3.5 straight adaptors for reliable impedance and RF leakage suppression in telecommunication applications.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
PC 3.5 Calibrated Straight Adaptors (Female-Female)
$49.99
Quantity: 1
Claim Your Seller Account
PC 3.5 Calibrated Straight Adaptors (Female-Female)
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

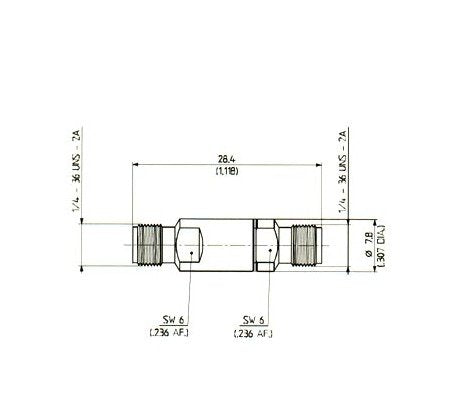

Designed for precise calibration, these straight adaptors for PC 3.5 Series connectors ensure reliable impedance (50 Ohms), RF leakage suppression (>100 dB), and exceptional durability (>500 mate cycles). With a temperature range of -85 to 194 degrees F, stainless steel construction, and compliance with strict standards, these adaptors provide superior performance for calibration needs in telecommunication and test equipment applications.
Product Specifications
Specifications Body
stainless steel
Specifications Body Material
stainless steel
Specifications Cable Entries
brass
Specifications Centre Contacts
beryllium-copper, hardened
Specifications Centre Contact Resistance M Ohms
<3
Specifications Configuration
straight
Specifications Connection
female-female
Specifications Connector Series
PC 3.5
Specifications Contact Captivation Lbs
>6.1
Specifications Coupling Nut Retention Force Lbs
>60.7
Specifications Dielectic Withstanding Voltage Sea Level V Rms
750/1000
Specifications Durability Matings
>500
Specifications Frequency Ghz
DC...33
Specifications Gaskets
silicone rubber
Specifications Impedance Ohms
50
Specifications Insulation Resistance M Ohms
>50000
Specifications Outside Contact Resistance M Ohms
<2
Specifications Packaging
single
Specifications Rf Leakage Db
>100
Specifications Support Beads
polystyrene, crosslinked
Specifications Temperature Range Degrees F
-85 to 194
Specifications Working Voltage Sea Level V Rms
<250/<335
