PC 3.5 Flange Mount Female Connectors with Interchangeable Transition Pins

Name: PC 3.5 Flange Mount Female Connectors with Interchangeable Transition Pins
Brand: C. W. Swift & Associates, Inc.
SKU: PC3-f7deef
Price: 39.99 USD
Availability: OutOfStock

SKU:PC3-f7deef

Experience precision and durability with our PC 3.5 Flange Mount Female Connectors. Impedance: 50 Ohms, Frequency: DC-33 GHz, RF Leakage: >100db.

$39.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

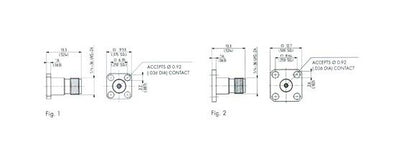

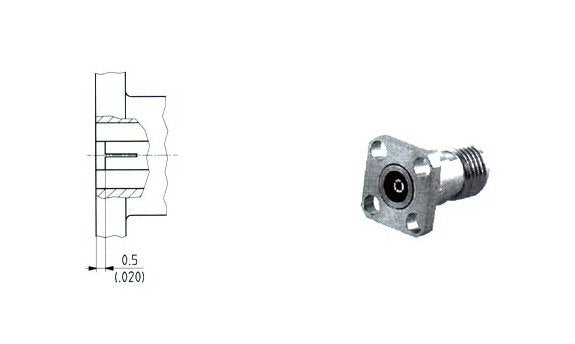

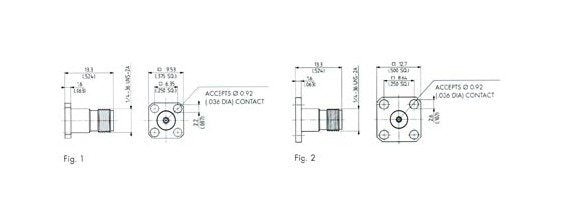

Upgrade your connectivity with our PC 3.5 Flange Mount Female Connectors. Designed for precision and durability, these connectors offer an impedance of 50 Ohms, RF Leakage exceeding 100 db, and a wide frequency range of DC to 33 GHz. With stainless steel body material, beryllium-copper center contacts, and silicone rubber gaskets, these connectors ensure reliable performance in extreme temperatures from -85 to 194 degrees Fahrenheit. Ideal for panel mounting, each connector comes with interchangeable transition pins for versatile applications.

Product Specifications

Specifications Body Material

stainless steel

Specifications Cable Entries

brass

Specifications Centre Contacts

beryllium-copper, hardened

Specifications Centre Contact Resistance M Ohms

Specifications Configuration

panel mounted

Specifications Connection

female

Specifications Connector Series

PC 3.5

Specifications Contact Captivation Lbs

>6.1

Specifications Coupling Nut Retention Force Lbs

>60.7

Specifications Dielectic Withstanding Voltage Sea Level V Rms

750/1000

Specifications Durability Matings

>500

Specifications Flange Type

square

Specifications Frequency Ghz

DC...33

Specifications Gaskets

silicone rubber

Specifications Impedance Ohms

Specifications Insulation Resistance M Ohms

>50000

Specifications Outside Contact Resistance M Ohms

Specifications Packaging

single

Specifications Rf Leakage Db

>100

Specifications Support Beads

polystyrene, crosslinked

Specifications Temperature Range Degrees F

-85 to 194

Specifications Working Voltage Sea Level V Rms

<250/<335
