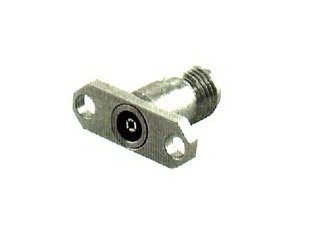

Enhance your connectivity with our PC 3.5 Flange Mount Jack Connectors. These connectors feature an impedance of 50 Ohms, frequency range up to 33GHz, and RF leakage of over 100db, ensuring reliable performance. With a durable stainless steel body, beryllium-copper center contacts, and silicone rubber gaskets, these connectors are built to withstand harsh environments. Meeting rigorous standards for insulation resistance, contact resistance, and durability, these connectors are ideal for demanding applications.
Product Specifications
Specifications Body Material
stainless steel
Specifications Cable Entries
brass
Specifications Centre Contacts
beryllium-copper, hardened
Specifications Centre Contact Resistance M Ohms
<3
Specifications Configuration
panel mounted
Specifications Connection
female
Specifications Connector Series
PC 3.5
Specifications Contact Captivation Lbs
>6.1
Specifications Dielectic Withstanding Voltage Sea Level V Rms
750/1000
Specifications Durability Matings
>500
Specifications Flange Type
2-hole
Specifications Frequency Ghz
DC...33
Specifications Gaskets
silicone rubber
Specifications Impedance Ohms
50
Specifications Insulation Resistance M Ohms
>50000
Specifications Outside Contact Resistance M Ohms
<2
Specifications Packaging
single
Specifications Rf Leakage Db
>100
Specifications Support Beads
polystyrene, crosslinked
Specifications Temperature Range Degrees F
-85 to 194
Specifications Working Voltage Sea Level V Rms
<250/<335
