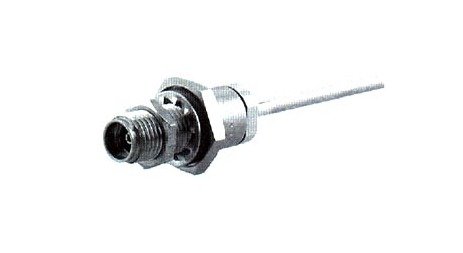

The PC 3.5 Straight Bulkhead Cable Plugs (Female) are precision-engineered connectors designed for seamless RF signal transmission. With an impedance of 50 Ohms and a frequency range of DC to 33 GHz, these connectors offer exceptional RF leakage protection (>100dB) and high durability for over 500 matings. Constructed with high-quality materials including stainless steel bodies, beryllium-copper center contacts, and silicone rubber gaskets, these connectors ensure reliable performance in extreme temperature conditions (-85 to 194°F). Ideal for semi-rigid cable connections, these straight cable plugs guarantee secure and efficient RF connections suitable for various applications.
Product Specifications
Specifications Body Material
stainless steel
Specifications Cable Entries
brass
Specifications Cable Group
Y5, Y12
Specifications Cable Type
semi-rigid
Specifications Centre Contacts
beryllium-copper, hardened
Specifications Centre Contact Resistance M Ohms
<3
Specifications Configuration
straight
Specifications Connection
female
Specifications Connector Series
PC 3.5
Specifications Contact Captivation Lbs
>6.1
Specifications Coupling Nut Retention Force Lbs
>60.7
Specifications Dielectic Withstanding Voltage Sea Level V Rms
750/1000
Specifications Durability Matings
>500
Specifications Frequency Ghz
DC...33
Specifications Gaskets
silicone rubber
Specifications Impedance Ohms
50
Specifications Insulation Resistance M Ohms
>50000
Specifications Mounting Hole
ML 35
Specifications Outside Contact Resistance M Ohms
<2
Specifications Packaging
single
Specifications Rf Leakage Db
>100
Specifications Support Beads
polystyrene, crosslinked
Specifications Temperature Range Degrees F
-85 to 194
Specifications Working Voltage Sea Level V Rms
<250/<335
