PC 3.5 Straight Cable Plugs (Female)
PC 3.5 Straight Cable Plugs (Female)
SKU:PC3-1ca1bc
High-performance PC 3.5 Straight Cable Plugs (Female) for reliable high-frequency connections in institutional settings.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
PC 3.5 Straight Cable Plugs (Female)
$29.99
Quantity: 1
Claim Your Seller Account
PC 3.5 Straight Cable Plugs (Female)
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

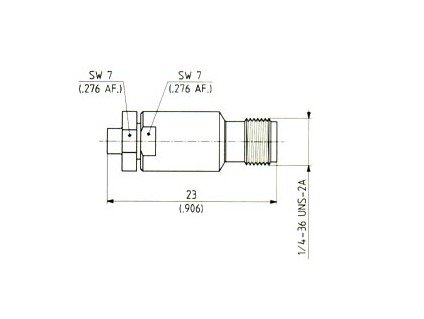

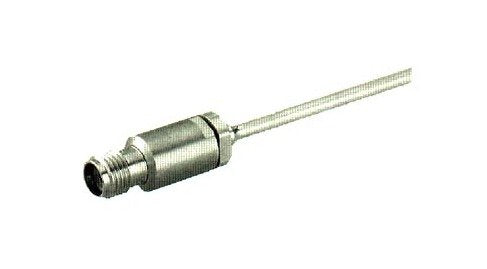

The PC 3.5 Straight Cable Plugs (Female) are precision-engineered connectors designed for high-frequency applications. With an impedance of 50 Ohms and a frequency range up to 33 GHz, these connectors ensure reliable signal transmission. Built with stainless steel bodies and beryllium-copper contacts, they offer exceptional durability and performance in extreme temperatures (-85 to 194 degrees F). Ideal for institutional and government use, these connectors meet stringent industry standards for RF leakage, dielectric strength, and insulation resistance.
Product Specifications
Specifications Body Material
stainless steel
Specifications Cable Entries
brass
Specifications Cable Group
Y3, Y11
Specifications Cable Type
semi-rigid
Specifications Centre Contacts
beryllium-copper, hardened
Specifications Centre Contact Resistance M Ohms
<3
Specifications Configuration
straight
Specifications Connection
female
Specifications Connector Series
PC 3.5
Specifications Contact Captivation Lbs
>6.1
Specifications Coupling Nut Retention Force Lbs
>60.7
Specifications Dielectic Withstanding Voltage Sea Level V Rms
750/1000
Specifications Durability Matings
>500
Specifications Frequency Ghz
DC...33
Specifications Gaskets
silicone rubber
Specifications Impedance Ohms
50
Specifications Insulation Resistance M Ohms
>50000
Specifications Outside Contact Resistance M Ohms
<2
Specifications Packaging
single
Specifications Rf Leakage Db
>100
Specifications Support Beads
polystyrene, crosslinked
Specifications Temperature Range Degrees F
-85 to 194
Specifications Working Voltage Sea Level V Rms
<250/<335
