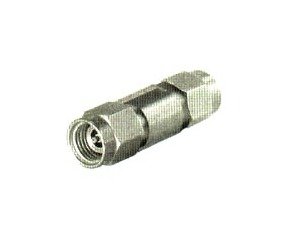

PC 3.5 Straight Calibration Adaptors - Male to Male

Name: PC 3.5 Straight Calibration Adaptors - Male to Male
Brand: C. W. Swift & Associates, Inc.
SKU: PC3-f21236
Price: 49.99 USD
Availability: OutOfStock

SKU:PC3-f21236

High-quality PC 3.5 Straight Calibration Adaptors for precise signal transmission and durability.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The PC 3.5 Straight Calibration Adaptors offer precision and reliability for calibration tasks. With an impedance of 50 Ohms and RF Leakage exceeding 100 db, these adaptors ensure accurate signal transmission. Constructed with high-quality materials like stainless steel body, beryllium-copper center contacts, and silicone rubber gaskets, they provide exceptional durability and performance even in harsh environments. Meeting stringent industry standards, these adaptors support a frequency range of up to 33 GHz and can withstand temperatures from -85 to 194 degrees F.

Product Specifications

Specifications Body

stainless steel

Specifications Body Material

stainless steel

Specifications Cable Entries

brass

Specifications Centre Contacts

beryllium-copper, hardened

Specifications Centre Contact Resistance M Ohms

Specifications Configuration

straight

Specifications Connection

male-male

Specifications Connector Series

PC 3.5

Specifications Contact Captivation Lbs

>6.1

Specifications Coupling Nut Retention Force Lbs

>60.7

Specifications Dielectic Withstanding Voltage Sea Level V Rms

750/1000

Specifications Durability Matings

>500

Specifications Frequency Ghz

DC...33

Specifications Gaskets

silicone rubber

Specifications Impedance Ohms

Specifications Insulation Resistance M Ohms

>50000

Specifications Outside Contact Resistance M Ohms

Specifications Packaging

single

Specifications Rf Leakage Db

>100

Specifications Support Beads

polystyrene, crosslinked

Specifications Temperature Range Degrees F

-85 to 194

Specifications Working Voltage Sea Level V Rms

<250/<335
