PC Mount Flat Pack Power Transformers - FP24-250, 24.0 V CT, 0.25 A
PC Mount Flat Pack Power Transformers - FP24-250, 24.0 V CT, 0.25 A
SKU:POW-2e31fc
Efficient and reliable PC Mount Flat Pack™ Power Transformer with UL recognized materials and high-pot testing at 2,000 V RMS.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
PC Mount Flat Pack Power Transformers - FP24-250, 24.0 V CT, 0.25 A
$29.99
Quantity: 1
Claim Your Seller Account
PC Mount Flat Pack Power Transformers - FP24-250, 24.0 V CT, 0.25 A
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The PC Mount Flat Pack™ Power Transformer FP24-250 is a reliable and efficient solution designed for electrical applications. With an electrical rating of 6.0 VA and a voltage of 24.0 V CT at 0.25 A, this transformer is constructed with UL recognized materials to ensure safety and quality. It features a center tap transformer contact type, dimensions optimized for easy installation, and high-pot testing at 2,000 V RMS for superior performance. Additionally, the transformer is RoHS compliant, meeting the latest industry standards.
Product Specifications
Specifications Agency File
UL: File E53148, UL 506, Class B General Purpose Transformer,cUL: File E53148, UL 506, Class B General Purpose Transformer, Canadian Use
Specifications Construction
Wound on two dual channel nylon bobbin. Materials are UL recognized, Class B (130º C) rated.

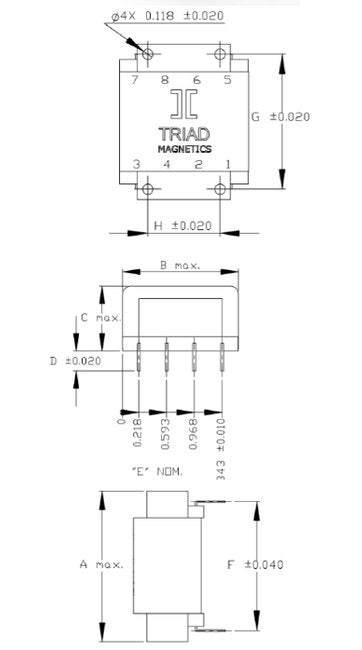

Specifications Dimension A
1.920 in
Specifications Dimension B
1.562 in
Specifications Dimension C
0.850 in
Specifications Dimension D
0.250 in
Specifications Dimension E
0.375 in
Specifications Dimension F
1.600 in
Specifications Dimension G
1.63 in
Specifications Dimension H
0.874 in
Specifications Dimension L
1.875 in
Specifications Dimension W
1.562 in
Specifications Electrical Rating
6.0 V·A
Specifications Mounting Length
1.62 in
Specifications Mounting Width
0.88 in
Specifications Pin Dimension
0.020 x 0.041 in
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Rms Hi Pot Tested
2,000 V
Specifications Rohs Compliance
As of manufacturing date February 2016, all standard products meet the requirements of 2015/863/EU, known as the RoHS 3 initiative.
Specifications Safety
These products are 100% tested for dielectric strength at 2 KVAC, 60 Hz between primary and secondary windings and between the primary/secondary windings and the core.

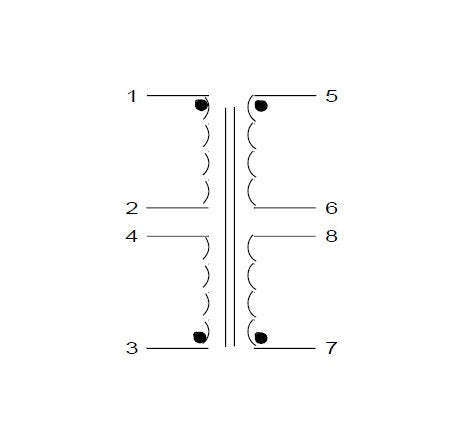

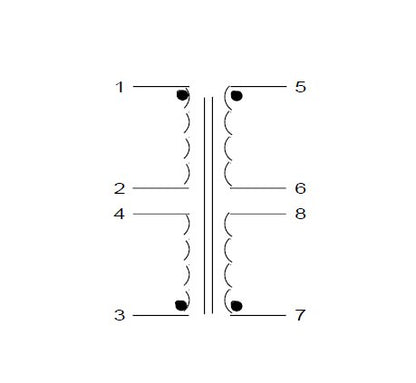

Specifications Transformer Contact Type
Center Tap
Specifications Voltage In Parallel
12.0 V at 0.5 A
Specifications Voltage In Series
24.0 V CT at 0.25 A
Specifications Weight
7.0 oz
Technical Notes 0
Hi-pot tested at 2,000 VRMS.Split bobbin with side-by-side windings to reduce capacitance and eliminate the need for a static shield.Mounting Holes: 2.5 VA & 6VA = 0.125"; 12 VA = 0.165"; 24 VA = 0.157"; 48 VA = 0.20"
