PC Mount Flat Pack Power Transformers - FP56-100
PC Mount Flat Pack Power Transformers - FP56-100
SKU:POW-f80a64
High-performance PC Mount Flat Pack Power Transformers - FP56-100. UL recognized, versatile voltage options, and RoHS compliant.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
PC Mount Flat Pack Power Transformers - FP56-100
$34.99
Quantity: 1
Claim Your Seller Account
PC Mount Flat Pack Power Transformers - FP56-100
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The PC Mount Flat Pack Power Transformers - FP56-100 are crafted for unwavering performance and reliability, boasting a sleek design and UL recognized materials. With an Electrical Rating of 6.0 VA and versatile Voltage options, including 56.0 V CT at 0.1 A and 28.0 V at 0.2 A, these transformers ensure efficient power management. Built with safety in mind, they undergo rigorous testing for dielectric strength and comply with RoHS regulations. Their construction features dual channel nylon bobbins and Class B rated materials, perfect for diverse applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Agency File
UL: File E53148, UL 506, Class B General Purpose Transformer,cUL: File E53148, UL 506, Class B General Purpose Transformer, Canadian Use
Specifications Construction
Wound on two dual channel nylon bobbin. Materials are UL recognized, Class B (130º C) rated.

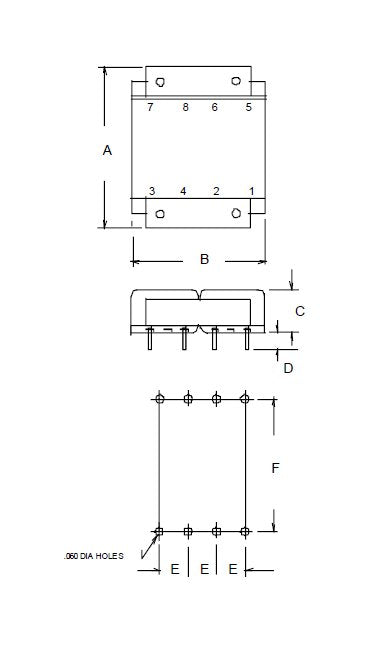

Specifications Dimension A
1.875 in
Specifications Dimension B
1.562 in
Specifications Dimension C
0.875 in
Specifications Dimension D
0.267 in
Specifications Dimension E
0.375 in
Specifications Dimension F
1.600 in
Specifications Dimension H
0.875 in
Specifications Dimension L
1.875 in
Specifications Dimension W
1.562 in
Specifications Electrical Rating
6.0 V·A
Specifications Mounting Length
1.62 in
Specifications Mounting Width
0.88 in
Specifications Pin Dimension
0.020 x 0.041 in
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Rms Hi Pot Tested
2,000 V
Specifications Rohs Compliance
As of manufacturing date February 2016, all standard products meet the requirements of 2015/863/EU, known as the RoHS 3 initiative.
Specifications Safety
These products are 100% tested for dielectric strength at 2 KVAC, 60 Hz between primary and secondary windings and between the primary/secondary windings and the core.
Specifications Transformer Contact Type
Center Tap
Specifications Voltage In Parallel
28.0 V at 0.2 A
Specifications Voltage In Series
56.0 V CT at 0.1 A
Specifications Weight
7.0 oz
Technical Notes 0
Hi-pot tested at 2,000 VRMS.Split bobbin with side-by-side windings to reduce capacitance and eliminate the need for a static shield.Mounting Holes: 2.5 VA & 6VA = 0.125"; 12 VA = 0.165"; 24 VA = 0.157"; 48 VA = 0.20"
