PC Mount Flat Pack™ Power Transformers - FP12-475

PC Mount Flat Pack™ Power Transformers - FP12-475

POW-760931

Reliable PC Mount Flat Pack™ Transformer with 6.0 V·A rating, UL recognized materials, and RoHS compliance.

$36.99
$36.99
Sale

Initiate Order

PC Mount Flat Pack™ Power Transformers - FP12-475

PC Mount Flat Pack™ Power Transformers - FP12-475

$36.99

Quantity: 1

Claim Your Seller Account

PC Mount Flat Pack™ Power Transformers - FP12-475

PC Mount Flat Pack™ Power Transformers - FP12-475

$36.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The PC Mount Flat Pack™ Power Transformer FP12-475 is a reliable and durable solution for various power applications. With an electrical rating of 6.0 V·A, this transformer offers a voltage in series of 12.6 V CT at 0.475 A and a voltage in parallel of 6.3 V at 0.95 A. It features a center tap transformer contact type and is constructed with UL recognized Class B materials, ensuring safety and efficiency. This transformer is RoHS compliant and meets stringent dielectric strength testing standards. Its compact dimensions and lightweight design make it ideal for space-sensitive installations.

Product Specifications

Specifications Agency File
UL: File E53148, UL 506, Class B General Purpose Transformer,cUL: File E53148, UL 506, Class B General Purpose Transformer, Canadian Use
Specifications Construction
Wound on two dual channel nylon bobbin. Materials are UL recognized, Class B (130º C) rated.

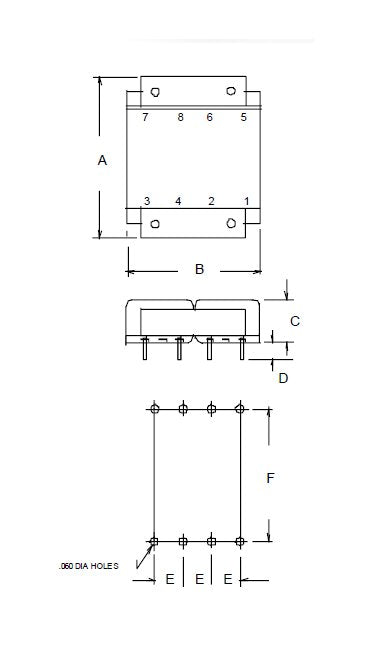

Specifications Dimension A
1.875 in
Specifications Dimension B
1.562 in
Specifications Dimension C
0.875 in
Specifications Dimension D
0.267 in
Specifications Dimension E
0.375 in
Specifications Dimension F
1.600 in
Specifications Dimension H
0.875 in
Specifications Dimension L
1.875 in
Specifications Dimension W
1.562 in
Specifications Electrical Rating
6.0 V·A
Specifications Mounting Length
1.62 in
Specifications Mounting Width
0.88 in
Specifications Pin Dimension
0.020 x 0.041 in
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Rms Hi Pot Tested
2,000 V
Specifications Rohs Compliance
As of manufacturing date February 2016, all standard products meet the requirements of 2015/863/EU, known as the RoHS 3 initiative.
Specifications Safety
These products are 100% tested for dielectric strength at 2 KVAC, 60 Hz between primary and secondary windings and between the primary/secondary windings and the core.

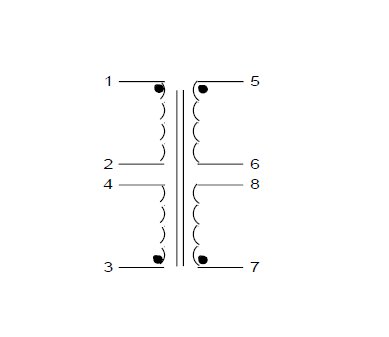

Specifications Transformer Contact Type
Center Tap
Specifications Voltage In Parallel
6.3 V at 0.95 A
Specifications Voltage In Series
12.6 V CT at 0.475 A
Specifications Weight
7.0 oz
Technical Notes 0
Hi-pot tested at 2,000 VRMS.Split bobbin with side-by-side windings to reduce capacitance and eliminate the need for a static shield.Mounting Holes: 2.5 VA & 6VA = 0.125"; 12 VA = 0.165"; 24 VA = 0.157"; 48 VA = 0.20"
