PC Mount Power Transformer - Single Primary Dual Secondaries
PC Mount Power Transformer - Single Primary Dual Secondaries
SKU:POW-6108a6
Versatile PC Mount Power Transformer for reliable power and control applications. Single primary, dual secondaries. Hi-pot tested for safety.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
PC Mount Power Transformer - Single Primary Dual Secondaries
$29.99
Quantity: 1
Claim Your Seller Account
PC Mount Power Transformer - Single Primary Dual Secondaries
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

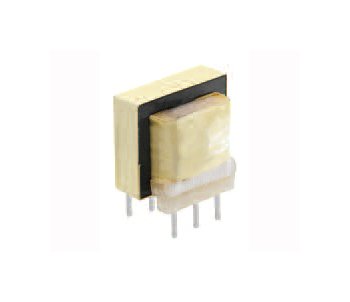

The PC Mount Power Transformer offers exceptional versatility for PC board and solid state power supply designs. Featuring a single primary and dual center tapped secondary configurations, this transformer is ideal for power, control, and instrumentation applications. With an electrical rating of 1 1/2 V·A, primary voltage of 115 V, and secondary voltage options of 30.0 V CT at 0.050 A or 15.0 V at 0.100 A, this transformer meets the highest quality standards and is hi-pot tested at 1,500 VRMS for reliability and safety.

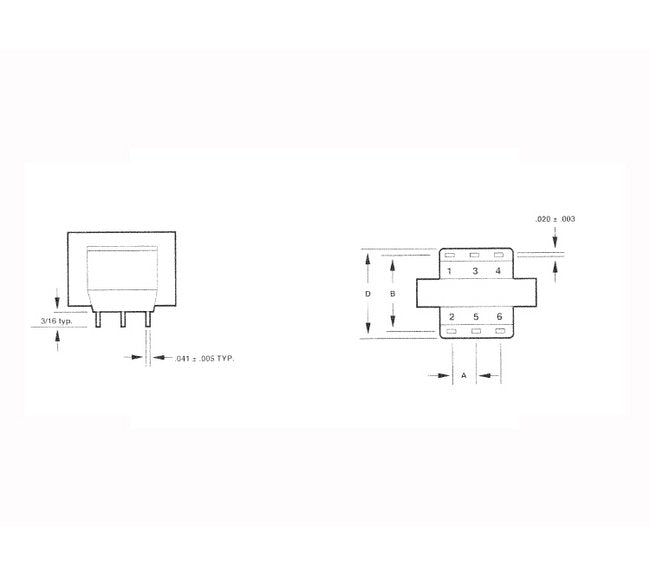

Product Specifications
Specifications Depth D
1 5/32 in
Specifications Dimension A
5/16 in
Specifications Dimension B
1 in
Specifications Electrical Rating
1 1/2 V·A
Specifications Height H
1 3/16 in
Specifications Length L
1 25/64 in
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V
Specifications Secondary Voltage In Parallel
15.0 V at 0.100 A
Specifications Secondary Voltage In Series
30.0 V CT at 0.050 A
Specifications Technical Notes
Hi-pot tested at 1,500 VRMS.
Specifications Transformer Contact Type
Center Tap
Specifications Weight
3.5 oz
