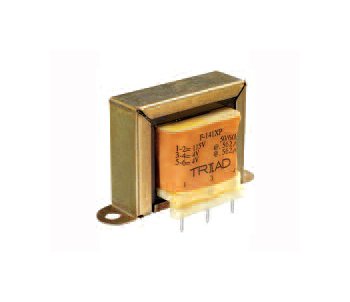

PC Mount Power Transformer - Single Primary Dual Secondaries
PC Mount Power Transformer - Single Primary Dual Secondaries
SKU:POW-cd7b97
Versatile PC Mount Power Transformer with Single Primary, Dual Secondaries - Ideal for power, control, and instrumentation applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
PC Mount Power Transformer - Single Primary Dual Secondaries
$29.99
Quantity: 1
Claim Your Seller Account
PC Mount Power Transformer - Single Primary Dual Secondaries
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

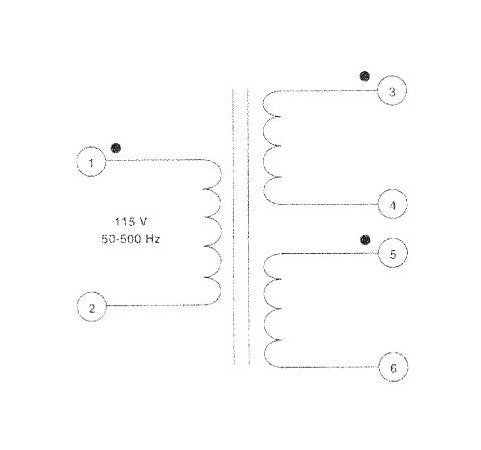

The PC Mount Power Transformer with a Single Primary and Dual Secondaries is designed to meet the specific requirements of PC board and solid state power supply designs. This transformer is versatile, catering to power, control, and instrumentation applications. With features like a center-tap transformer contact type, Hi-pot testing at 1,500 VRMS, and dual center tapped secondary configurations offering both 30.0 V CT at 0.250 A and 15.0 V at 0.500 A options, this transformer ensures reliable performance for a range of applications.
Product Specifications

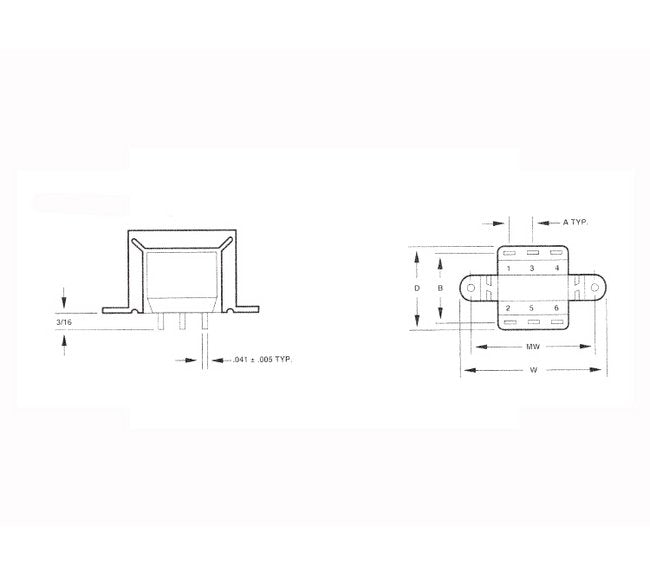

Specifications Depth D
1 15/32 in
Specifications Dimension A
13/32 in
Specifications Dimension B
1 5/16 in
Specifications Electrical Rating
7 1/2 V·A
Specifications Height H
1 5/8 in
Specifications Length L
1 61/64 in
Specifications Mounting Hole Size
3/16 in
Specifications Mounting Width
2 3/8 in
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V
Specifications Secondary Voltage In Parallel
15.0 V at 0.500 A
Specifications Secondary Voltage In Series
30.0 V CT at 0.250 A
Specifications Technical Notes
Hi-pot tested at 1,500 VRMS.
Specifications Transformer Contact Type
Center Tap
Specifications Weight
10.5 oz
Specifications Width W
2 13/16 in
