PC Mount Power Transformer with Triple Output Secondaries
PC Mount Power Transformer with Triple Output Secondaries
SKU:POW-6e5032
Transform your power supply with Triad's Triple Output PC Mount Transformer for versatile control and instrumentation applications.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
PC Mount Power Transformer with Triple Output Secondaries
$24.99
Quantity: 1
Claim Your Seller Account
PC Mount Power Transformer with Triple Output Secondaries
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

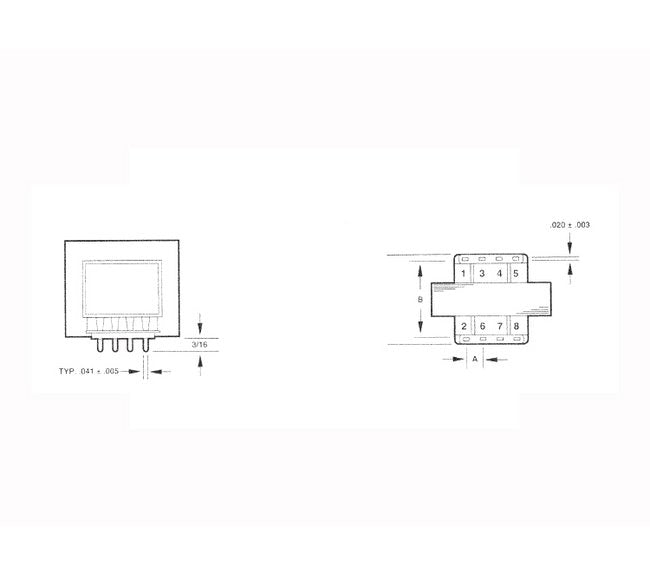

Enhance your power supply designs with our Triad PC Mount Power Transformer featuring dual primary and triple center-tapped secondary configurations. This transformer, tested at 1,500 VRMS, provides exceptional power, control, and instrumentation solutions for a variety of applications. With dimensions (H) 1 3/16 in x (W) 1 25/64 in x (D) 1 5/32 in, and weight of 3.5 oz, it offers outstanding performance and compact size for easy integration.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Depth D
1 5/32 in
Specifications Dimension A
13/64 in
Specifications Dimension B
1 in
Specifications Electrical Rating
1 1/2 V·A
Specifications Height H
1 3/16 in
Specifications Length L
1 25/64 in
Specifications Mounting Hole Size
3/16 in
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V
Specifications Secondary Voltage In Parallel
15.0 V at 0.060 A
Specifications Secondary Voltage In Series
32.0 V CT at 0.020 A
Specifications Technical Notes
Hi-pot tested at 1,500 VRMS.
Specifications Transformer Contact Type
Center Tap
Specifications Weight
3.5 oz
Specifications Width W
1 25/64 in
