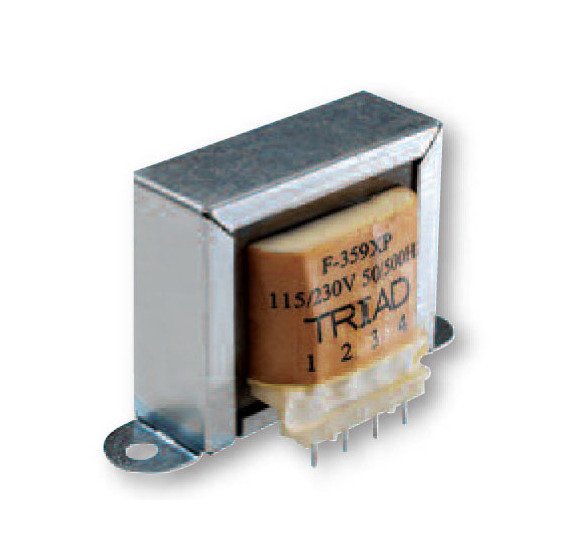

PC Mount Power Transformers
PC Mount Power Transformers
SKU:POW-2c8f74
Enhance power supply designs with our Dual Primary, Dual Secondary PC Mount Power Transformers. Global market compatibility with dual primary options and efficient performance for various applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
PC Mount Power Transformers
$29.99
Quantity: 1
Claim Your Seller Account
PC Mount Power Transformers
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your power supply designs with our versatile Dual Primary, Dual Secondary PC Mount Power Transformers. Ideal for PC boards and solid state applications, these transformers offer dual primary options for global market compatibility. With electrical ratings of 10 VA and secondary voltages ranging from 6.30 V to 12.6 V CT, these transformers are suitable for a wide range of power, control, and instrumentation applications. Built to industry standards, including hi-pot testing at 1,500 VRMS, ensure reliable and efficient performance. Mounting dimensions of 2 13/16" W x 1 7/16" D make installation easy, catering to both consumer and institutional needs.
Product Specifications
Specifications Depth D
1 7/16 in
Specifications Dimension A
1/4 in
Specifications Dimension B
1 5/16 in
Specifications Electrical Rating
10 V·A
Specifications Height H
1 5/8 in
Specifications Length L
1 7/8 in
Specifications Mounting Hole Size
3/16 in
Specifications Mounting Width
2 3/8 in
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Secondary Voltage In Parallel
6.30 V at 1.6 A
Specifications Secondary Voltage In Series
12.6 V CT at 0.800 A
Specifications Transformer Contact Type
Center Tap
Specifications Weight
11.0 oz
Specifications Width W
2 13/16 in
Technical Notes Technical Notes
The transformers with dual primaries permit their use in equipment for sale in both foreign and domestic markets.Hi-pot tested at 1,500 VRMS.
