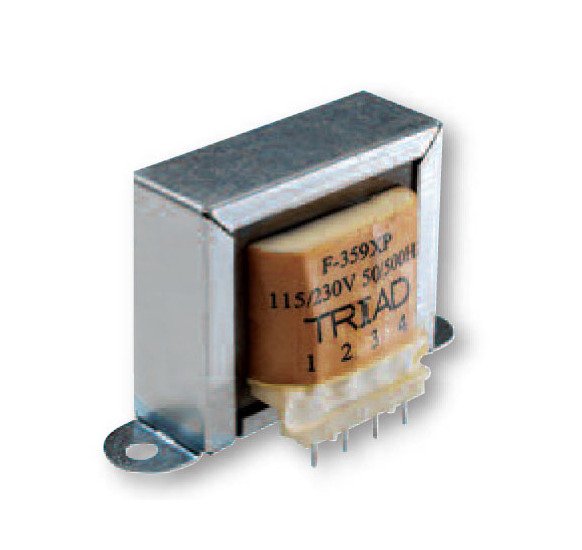

• PC Mount Power Transformers | Dual Primary/Self-Adjusting Dual Secondary - Image 1
  • PC Mount Power Transformers | Dual Primary/Self-Adjusting Dual Secondary - Image 2
  • PC Mount Power Transformers | Dual Primary/Self-Adjusting Dual Secondary - Image 3
1 3
Triad Magnetics →

PC Mount Power Transformers | Dual Primary/Self-Adjusting Dual Secondary

PC Mount Power Transformers | Dual Primary/Self-Adjusting Dual Secondary

POW-8e39fa

High-performance Dual Primary/Self-Adjusting Dual Secondary transformers for precise power supply design.

$49.99
$49.99
Sale

Initiate Order

PC Mount Power Transformers | Dual Primary/Self-Adjusting Dual Secondary

PC Mount Power Transformers | Dual Primary/Self-Adjusting Dual Secondary

$49.99

Quantity: 1

Claim Your Seller Account

PC Mount Power Transformers | Dual Primary/Self-Adjusting Dual Secondary

PC Mount Power Transformers | Dual Primary/Self-Adjusting Dual Secondary

$49.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Dual Primary, Dual Secondary PC Mount Power Transformers are engineered to meet the exacting needs of PC board and solid-state power supply designs. These transformers excel in power, control, and instrumentation applications, boasting a flexible dual primary and dual center-tapped secondary configuration. With an electrical rating of 10 V·A, Hi-Pot tested at 1,500 VRMS, and compliant with international standards, these transformers are the ideal choice for versatile and reliable power solutions.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Specifications Depth D
1 7/16 in
Specifications Dimension A
1/4 in
Specifications Dimension B
1 5/16 in
Specifications Electrical Rating
10 V·A
Specifications Height H
1 5/8 in
Specifications Length L
1 7/8 in
Specifications Mounting Hole Size
3/16 in
Specifications Mounting Width
2 3/8 in
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Secondary Voltage In Parallel
10.0 V at 1.0 A
Specifications Secondary Voltage In Series
20.0 V CT at 0.500 A
Specifications Transformer Contact Type
Center Tap
Specifications Weight
11.0 oz
Specifications Width W
2 13/16 in
Technical Notes Technical Notes
The transformers with dual primaries permit their use in equipment for sale in both foreign and domestic markets.Hi-pot tested at 1,500 VRMS.
