PC Mount Split Pack Power Transformers
PC Mount Split Pack Power Transformers
SKU:POW-2f0eea
Versatile PC board transformers with split bobbin design for efficient and cost-effective performance.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
PC Mount Split Pack Power Transformers
$49.99
Quantity: 1
Claim Your Seller Account
PC Mount Split Pack Power Transformers
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The PC Mount Split Pack Power Transformers by Triad are essential components for PC board applications, featuring a unique split bobbin design that eliminates costly electrostatic shielding. With nonconcentric windings and low capacitive coupling, these transformers offer reliable performance. Available in a dual secondary configuration with single or dual primaries, these transformers provide a secondary voltage of 120.0 V CT at 0.3 A in series or 60.0 V at 0.6 A in parallel. The versatile design and precise specifications make them ideal for meeting institutional procurement standards.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

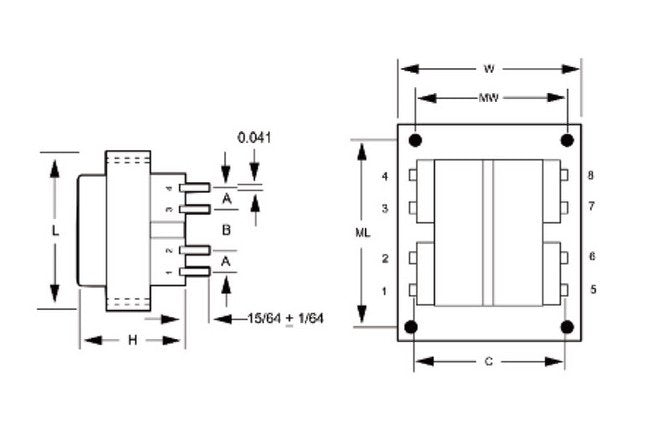

Specifications Dimension A
0.40 in
Specifications Dimension B
0.40 in
Specifications Dimension C
1.850 in
Specifications Electrical Rating
36.0 V·A
Specifications Height H
1 9/16 in
Specifications Length L
2 5/8 in
Specifications Mounting Length
2.188 in
Specifications Mounting Width
1.75 in
Specifications Number Of Pins
6
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Secondary Voltage In Parallel
60.0 V at 0.6 A
Specifications Secondary Voltage In Series
120.0 V CT at 0.3 A
Specifications Transformer Contact Type
Center Tap
Specifications Type
Single Primary
Specifications Weight
1.10 lb
Specifications Width W
2 3/16 in
Technical Notes 0
Hi-pot tested at 2,500 VRMS.PC terminal pin spacing for accurate placement.115 V connect primary in parallel.230 V connect primary in series.Series Connections:Primary - Input 1 & 4Connect 2 & 3Secondary - Input 5 & 8Connect 6 & 7Parallel Connections:Primary - Input 1 & 2Connect 1 & 3. 2 & 4Secondary - Input 5 & 8Connect 5 & 7, 6 & 8For single primary, omit pins 2 and 3.1.1 & 2.5 VA are not offered with mounting holes.
