PC Mount Split Pack Power Transformers - Dual Primary Configuration
PC Mount Split Pack Power Transformers - Dual Primary Configuration
SKU:POW-861006
Revolutionize PC board applications with our efficient Split Pack Power Transformers. Dual primary configuration for reliable power distribution.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
PC Mount Split Pack Power Transformers - Dual Primary Configuration
$49.99
Quantity: 1
Claim Your Seller Account
PC Mount Split Pack Power Transformers - Dual Primary Configuration
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The PC Mount Split Pack Power Transformers are a revolutionary solution for PC board applications. Featuring a split bobbin design with nonconcentric windings, these transformers offer superior versatility and efficiency. Designed to eliminate costly electrostatic shielding, the transformers come in a dual secondary configuration with options for single or dual primaries. With a high electrical rating of 36.0 VA, and dual primary voltage compatibility of 115V and 230V, these transformers provide reliable power distribution with minimal capacitive coupling. Ideal for institutional and government procurement applications requiring high-quality, standardized components.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

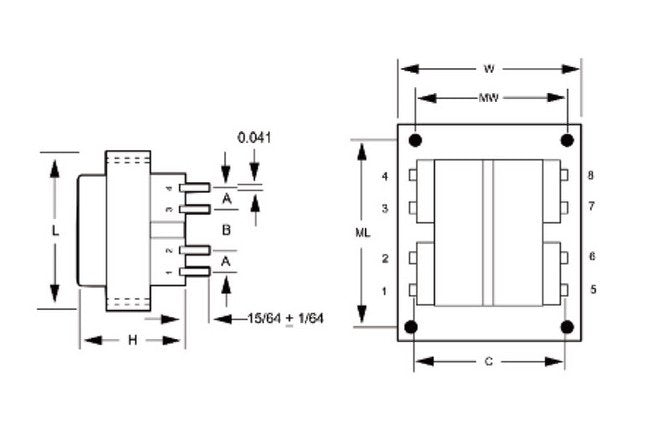

Specifications Dimension A
0.40 in
Specifications Dimension B
0.40 in
Specifications Dimension C
1.850 in
Specifications Electrical Rating
36.0 V·A
Specifications Height H
1 9/16 in
Specifications Length L
2 5/8 in
Specifications Mounting Length
2.188 in
Specifications Mounting Width
1.75 in
Specifications Number Of Pins
8
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Secondary Voltage In Parallel
6.3 V at 5.7 A
Specifications Secondary Voltage In Series
12.6 V CT at 2.85 A
Specifications Transformer Contact Type
Center Tap
Specifications Type
Dual Primary
Specifications Weight
1.10 lb
Specifications Width W
2 3/16 in
Technical Notes 0
Hi-pot tested at 2,500 VRMS.PC terminal pin spacing for accurate placement.115 V connect primary in parallel.230 V connect primary in series.Series Connections:Primary - Input 1 & 4Connect 2 & 3Secondary - Input 5 & 8Connect 6 & 7Parallel Connections:Primary - Input 1 & 2Connect 1 & 3. 2 & 4Secondary - Input 5 & 8Connect 5 & 7, 6 & 8For single primary, omit pins 2 and 3.1.1 & 2.5 VA are not offered with mounting holes.
