PC Mount Split Pack™ Class 2/3 Power Transformers - Dual Primary Configuration

PC Mount Split Pack™ Class 2/3 Power Transformers - Dual Primary Configuration

POW-2b7519

Versatile PC board transformers with split bobbin design and dual primary configuration for reliable performance in institutional applications.

$24.99
$24.99
Sale

Initiate Order

PC Mount Split Pack™ Class 2/3 Power Transformers - Dual Primary Configuration

PC Mount Split Pack™ Class 2/3 Power Transformers - Dual Primary Configuration

$24.99

Quantity: 1

Claim Your Seller Account

PC Mount Split Pack™ Class 2/3 Power Transformers - Dual Primary Configuration

PC Mount Split Pack™ Class 2/3 Power Transformers - Dual Primary Configuration

$24.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The PC Mount Split Pack™ Class 2/3 Power Transformers offer exceptional versatility for PC board applications. Featuring a unique split bobbin design, these transformers eliminate costly electrostatic shielding with nonconcentric winding. With dual primary configuration options and TUV approval, these transformers ensure reliable performance. Hi-pot tested at 4,250 VRMS, these transformers meet rigorous industry standards for safety and reliability.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Note 0
TUV Approved

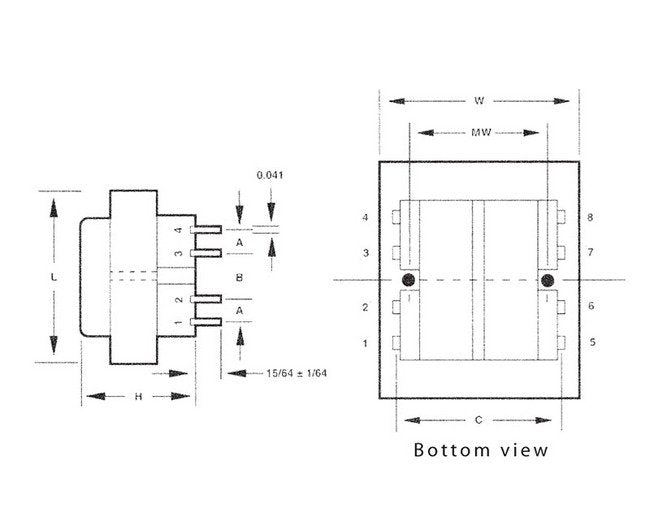

Specifications Dimension A
0.265 in
Specifications Dimension B
0.265 in
Specifications Dimension C
1.200 in
Specifications Dimension D
0.041 in
Specifications Dimension E
0.020 in
Specifications Dimension F
0.236 in
Specifications Electrical Rating
1.1 V·A
Specifications Height H
1.130 in
Specifications Length L
1.417 in
Specifications Number Of Pins
8
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Secondary Voltage In Parallel
6.3 V at 0.18 A
Specifications Secondary Voltage In Series
12.6 V CT at 0.09 A
Specifications Transformer Contact Type
Center Tap
Specifications Type
Dual Primary
Specifications Weight
0.17 lb
Specifications Width W
1.142 in
Technical Notes 0

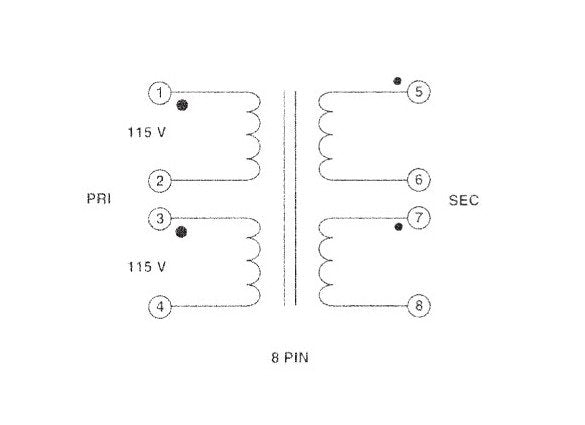

Hi-pot tested at 4,250 VRMS.PC terminal pin spacing for accurate placement.115 V connect primary in parallel.230 V connect primary in series.Series Connections:Primary - Input 1 & 4Connect 2 & 3Secondary - Input 5 & 8Connect 6 & 7Parallel Connections:Primary - Input 1 & 2Connect 1 & 3. 2 & 4Secondary - Input 5 & 8Connect 5 & 7, 6 & 8For single primary, omit pins 2 and 3.1.1 & 2.5 VA are not offered with mounting holes.
