PC Mount Split Pack™ Power Transformer - Dual Primary Configuration

PC Mount Split Pack™ Power Transformer - Dual Primary Configuration

POW-b2c8c6

Versatile PC board power transformer with split bobbin design for reliable performance. Dual primary configuration for flexible usage.

$29.99
$29.99
Sale

Initiate Order

PC Mount Split Pack™ Power Transformer - Dual Primary Configuration

PC Mount Split Pack™ Power Transformer - Dual Primary Configuration

$29.99

Quantity: 1

Claim Your Seller Account

PC Mount Split Pack™ Power Transformer - Dual Primary Configuration

PC Mount Split Pack™ Power Transformer - Dual Primary Configuration

$29.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The PC Mount Split Pack™ Class 2/3 Power Transformer is a versatile solution for PC board applications, featuring a split bobbin design that eliminates costly electrostatic shielding. With a dual primary configuration, this transformer offers flexibility for various setups. Its high-quality construction and precise technical specifications make it an ideal choice for institutional and government buyers seeking reliable power transformers that meet stringent procurement standards.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

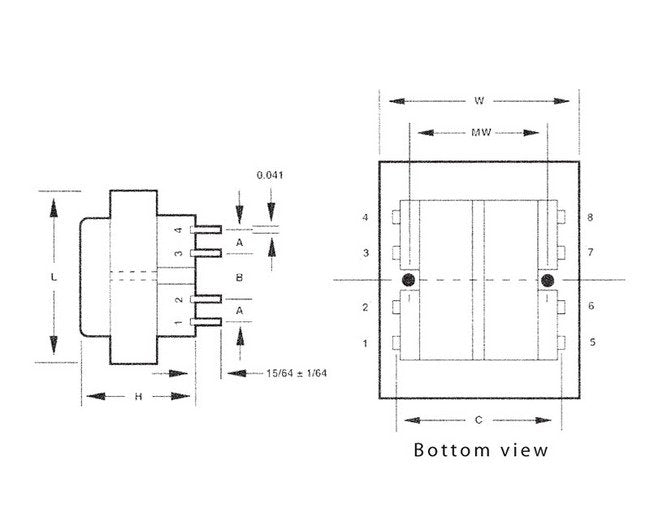

Specifications Dimension A
0.265 in
Specifications Dimension B
0.365 in
Specifications Dimension C
1.300 in
Specifications Dimension D
0.041 in
Specifications Dimension E
0.020 in
Specifications Dimension F
0.236 in
Specifications Electrical Rating
6.0 V·A
Specifications Height H
1.398 in
Specifications Length L
1.650 in
Specifications Mounting Width
1 1/16 in
Specifications Number Of Pins
8
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Secondary Voltage In Parallel
28.0 V at 0.22 A
Specifications Secondary Voltage In Series
56.0 V CT at 0.11 A
Specifications Transformer Contact Type
Center Tap
Specifications Type
Dual Primary
Specifications Weight
0.44 lb
Specifications Width W
1.331 in
Technical Notes 0

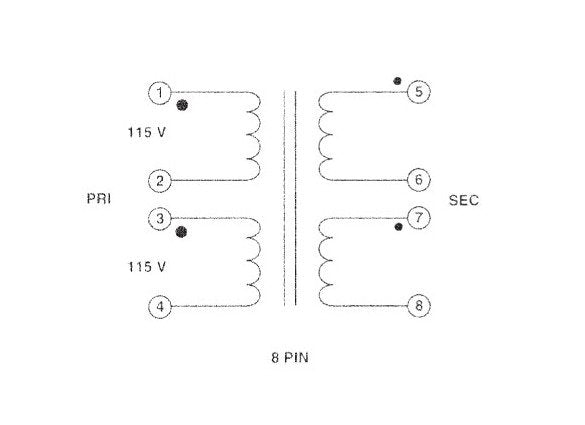

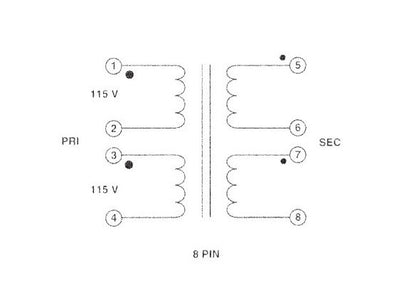

Hi-pot tested at 4,250 VRMS.PC terminal pin spacing for accurate placement.115 V connect primary in parallel.230 V connect primary in series.Series Connections:Primary - Input 1 & 4Connect 2 & 3Secondary - Input 5 & 8Connect 6 & 7Parallel Connections:Primary - Input 1 & 2Connect 1 & 3. 2 & 4Secondary - Input 5 & 8Connect 5 & 7, 6 & 8For single primary, omit pins 2 and 3.1.1 & 2.5 VA are not offered with mounting holes.
