PC Mount Split Pack⢠Power Transformers - Dual Primary Configuration
PC Mount Split Pack⢠Power Transformers - Dual Primary Configuration
SKU:POW-043d1e
Versatile PC board transformers with split bobbin design, dual primary configuration, and high electrical ratings for reliable performance.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
PC Mount Split Pack⢠Power Transformers - Dual Primary Configuration
$49.99
Quantity: 1
Claim Your Seller Account
PC Mount Split Pack⢠Power Transformers - Dual Primary Configuration
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The PC Mount Split Pack⢠Power Transformers feature a versatile split bobbin design ideal for PC board applications. With nonconcentric winding, these transformers offer side-by-side primaries and secondaries, eliminating costly electrostatic shielding. The dual primary configuration accommodates both 115V and 230V inputs, with high electrical ratings of 36.0 VA. Hi-pot tested at 2,500 VRMS, these transformers ensure reliable performance and precise mounting with PC terminal pin spacing. Meeting stringent industry standards, these transformers offer exceptional efficiency and safety for a wide range of applications.
Product Specifications

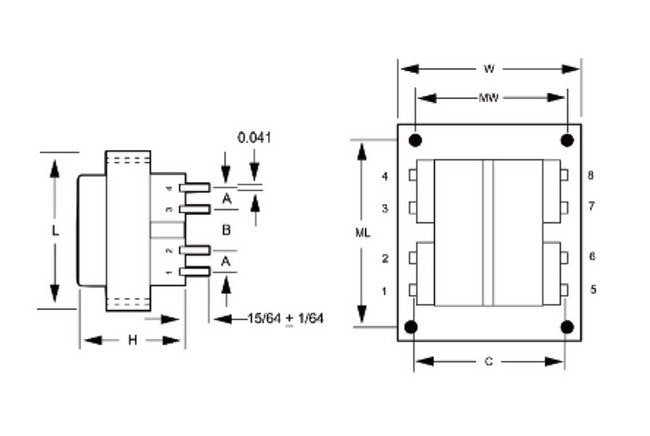

Specifications Dimension A
0.40 in
Specifications Dimension B
0.40 in
Specifications Dimension C
1.850 in
Specifications Electrical Rating
36.0 V·A
Specifications Height H
1 9/16 in
Specifications Length L
2 5/8 in
Specifications Mounting Length
2.188 in
Specifications Mounting Width
1.75 in
Specifications Number Of Pins
8
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Secondary Voltage In Parallel
10.0 V at 3.6 A
Specifications Secondary Voltage In Series
20.0 V CT at 1.8 A
Specifications Transformer Contact Type
Center Tap
Specifications Type
Dual Primary
Specifications Weight
1.10 lb
Specifications Width W
2 3/16 in
Technical Notes 0
Hi-pot tested at 2,500 VRMS.PC terminal pin spacing for accurate placement.115 V connect primary in parallel.230 V connect primary in series.Series Connections:Primary - Input 1 & 4Connect 2 & 3Secondary - Input 5 & 8Connect 6 & 7Parallel Connections:Primary - Input 1 & 2Connect 1 & 3. 2 & 4Secondary - Input 5 & 8Connect 5 & 7, 6 & 8For single primary, omit pins 2 and 3.1.1 & 2.5 VA are not offered with mounting holes.
