PC Mount Split Pack⢠Power Transformers for PC Board Applications
PC Mount Split Pack⢠Power Transformers for PC Board Applications
SKU:POW-fa59fa
Versatile split bobbin transformers for PC board applications, offering high efficiency and reduced shielding costs.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
PC Mount Split Pack⢠Power Transformers for PC Board Applications
$34.99
Quantity: 1
Claim Your Seller Account
PC Mount Split Pack⢠Power Transformers for PC Board Applications
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Designed for PC board applications, the Triad Split Pack⢠Power Transformers offer exceptional versatility and reliability. Featuring a unique split bobbin winding, these transformers eliminate electrostatic shielding needs due to low capacitive coupling. The transformers come in a dual secondary configuration with options for single or dual primaries, making them ideal for a wide range of power supply needs.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

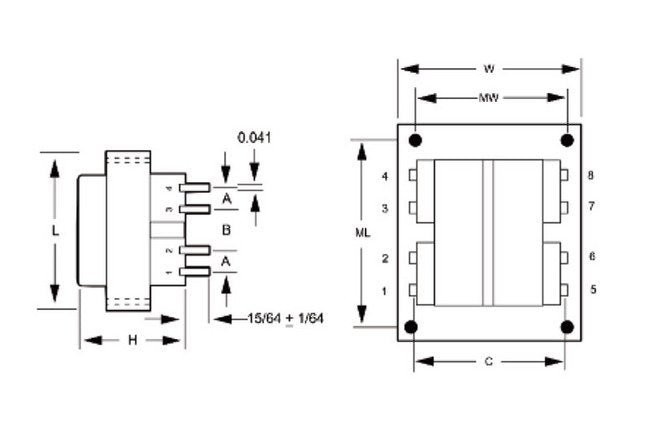

Specifications Dimension A
0.40 in
Specifications Dimension B
0.40 in
Specifications Dimension C
1.850 in
Specifications Electrical Rating
36.0 V·A
Specifications Height H
1 9/16 in
Specifications Length L
2 5/8 in
Specifications Mounting Length
2.188 in
Specifications Mounting Width
1.75 in
Specifications Number Of Pins
6
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Secondary Voltage In Parallel
24.0 V at 1.5 A
Specifications Secondary Voltage In Series
48.0 V CT at 0.75 A
Specifications Transformer Contact Type
Center Tap
Specifications Type
Single Primary
Specifications Weight
1.10 lb
Specifications Width W
2 3/16 in
Technical Notes 0
Hi-pot tested at 2,500 VRMS.PC terminal pin spacing for accurate placement.115 V connect primary in parallel.230 V connect primary in series.Series Connections:Primary - Input 1 & 4Connect 2 & 3Secondary - Input 5 & 8Connect 6 & 7Parallel Connections:Primary - Input 1 & 2Connect 1 & 3. 2 & 4Secondary - Input 5 & 8Connect 5 & 7, 6 & 8For single primary, omit pins 2 and 3.1.1 & 2.5 VA are not offered with mounting holes.
