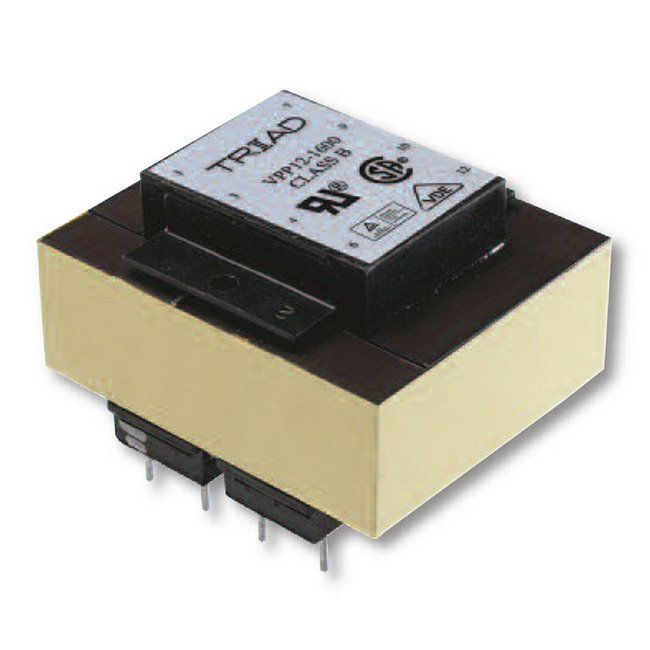

PC Mount World Series Power Transformers
PC Mount World Series Power Transformers
SKU:POW-7cb750
Experience superior performance with the PC Mount World Series Power Transformers, designed to exceed UL flammability requirements and meet U.S. and International standards for universal application.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
PC Mount World Series Power Transformers
$39.99
Quantity: 1
Claim Your Seller Account
PC Mount World Series Power Transformers
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The PC Mount World Series Power Transformers are expertly designed with a dual bobbin construction and high temperature material, ensuring superior performance and exceeding UL flammability requirements. With very high isolation between primary and secondary windings, these transformers eliminate the need for electrostatic shielding. Meeting U.S. and International standards including CSA, IEC, TUV, and UL, these transformers offer universal application and are ideal for institutional and government procurement.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Note 0
Class 2/3 UL File: E65390

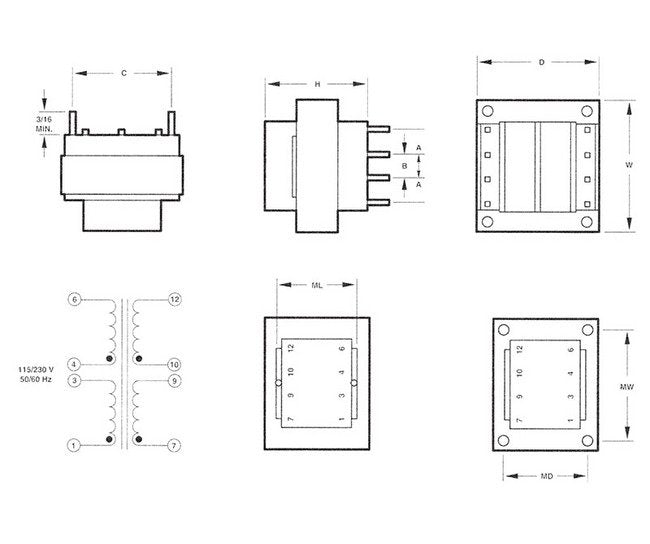

Specifications Depth D
1 9/16 in
Specifications Dimension A
0.200 in
Specifications Dimension B
0.400 in
Specifications Dimension C
1.140 in
Specifications Electrical Rating
10 V·A
Specifications Height H
1 3/8 in
Specifications Industry Standards
CSA | IEC | TUV | UL
Specifications Mounting Length
1 1/4 in
Specifications Pin Dimension
0.036 in²
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Secondary Parallel
12.0 V at 0.84 A
Specifications Secondary Series
24.0 V CT at 0.42 A
Specifications Transformer Contact Type
Center Tap
Specifications Weight
0.50 lb
Specifications Width W
1 7/8 in
Technical Notes 0
Hi-pot tested at 4,000 VRMS.Both primary and secondary coils may be connected as either series or parallel, but both must be used simultaneously.
