PC Mount World Series Power Transformers
PC Mount World Series Power Transformers
SKU:POW-a01cb2
High-performance PC mount transformers with dual bobbin construction, high isolation, and universal standards compliance.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
PC Mount World Series Power Transformers
$39.99
Quantity: 1
Claim Your Seller Account
PC Mount World Series Power Transformers
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

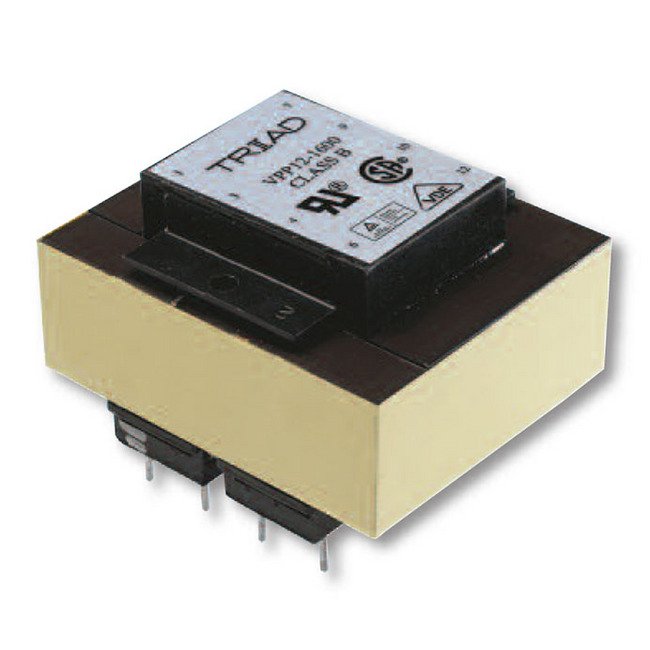

The PC Mount World Series Power Transformers are designed with a dual bobbin construction and insulating shroud using high-temperature material, exceeding UL flammability requirements. These transformers offer very high isolation between primary and secondary windings as well as the core, eliminating the need for electrostatic shielding. With ratings ranging from 2.5 VA to 56.0 VA, these transformers feature dimensionally accurate pin placement for easy through-hole PC board mounting. Meeting U.S. and international standards such as CSA, IEC, TUV, and UL, these transformers ensure universal compatibility and reliable performance for various applications.
Product Specifications
Note 0
Class 2/3 UL File: E65390

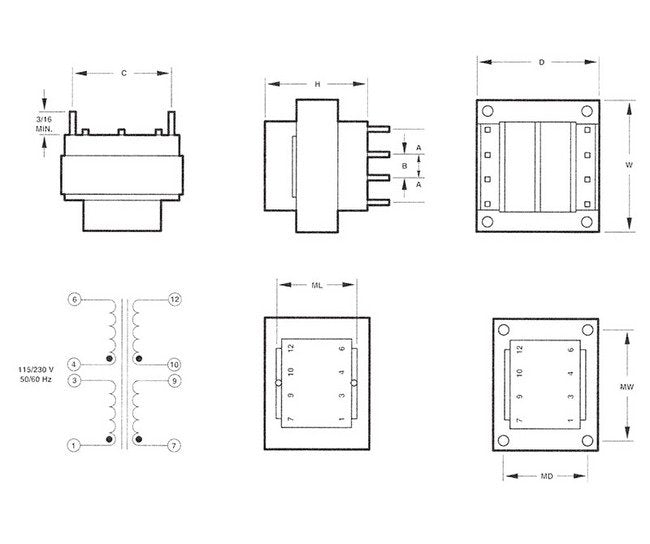

Specifications Depth D
1 5/16 in
Specifications Dimension A
0.200 in
Specifications Dimension B
0.400 in
Specifications Dimension C
1.000 in
Specifications Electrical Rating
5 V·A
Specifications Height H
1 3/8 in
Specifications Industry Standards
CSA | IEC | TUV | UL
Specifications Mounting Length
1 1/16 in
Specifications Pin Dimension
0.025 in²
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Secondary Parallel
12.0 V at 0.42 A
Specifications Secondary Series
24.0 V CT at 0.21 A
Specifications Transformer Contact Type
Center Tap
Specifications Weight
0.40 lb
Specifications Width W
1 5/8 in
Technical Notes 0
Hi-pot tested at 4,000 VRMS.Both primary and secondary coils may be connected as either series or parallel, but both must be used simultaneously.
