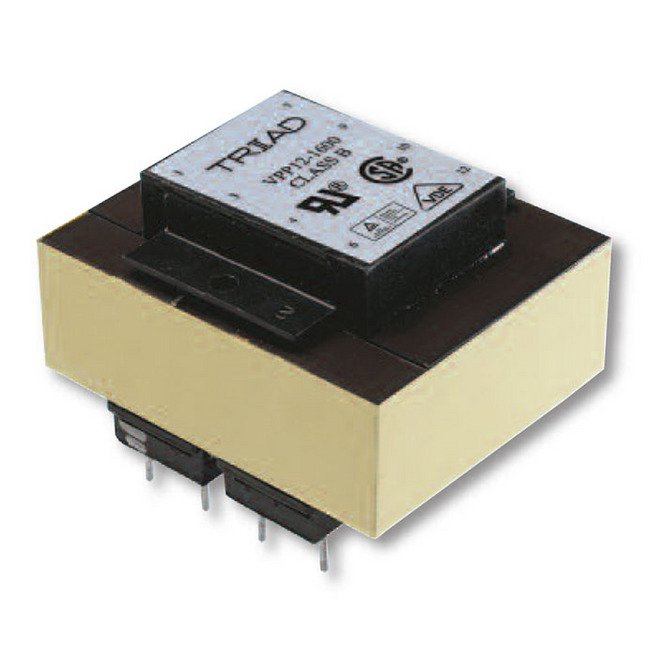

The PC Mount World Series Transformers feature a dual bobbin construction with high temperature insulating shroud, providing excellent isolation between windings and core. With reduced capacitance, electrostatic shielding is unnecessary. These transformers meet UL flammability requirements, offer high isolation levels, and come in various VA ratings. Designed for through hole PC board mounting, they meet U.S. and International standards such as CSA, IEC, TUV, and UL, ensuring universal application.
Product Specifications
Note 0
Class 2/3 UL File: E65390

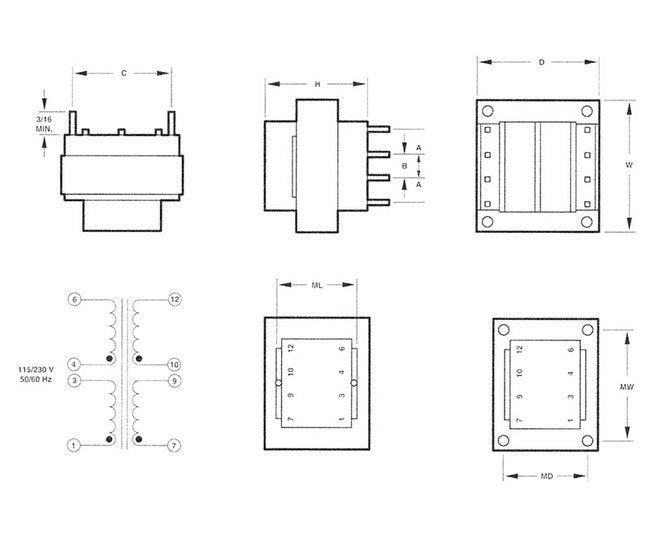

Specifications Depth D
2 3/16 in
Specifications Dimension A
0.550 in
Specifications Dimension B
0.275 in
Specifications Dimension C
1.680 in
Specifications Electrical Rating
30.0 V·A
Specifications Height H
1 9/16 in
Specifications Industry Standards
CSA | IEC | TUV | UL
Specifications Mounting Depth
1 3/4 in
Specifications Mounting Width
2 3/16 in
Specifications Pin Dimension
0.045 in²
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Secondary Parallel
6.3 V at 4.8 A
Specifications Secondary Series
12.6 V CT at 2.4 A
Specifications Transformer Contact Type
Center Tap
Specifications Weight
1.20 lb
Specifications Width W
2 5/8 in
Technical Notes 0
Hi-pot tested at 4,000 VRMS.Both primary and secondary coils may be connected as either series or parallel, but both must be used simultaneously.
