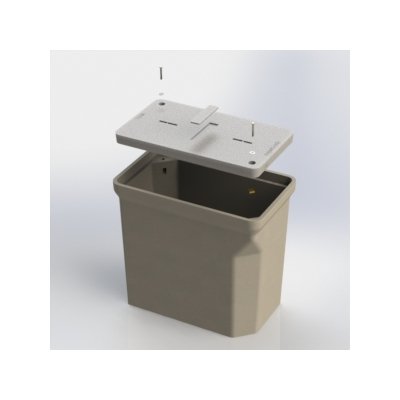

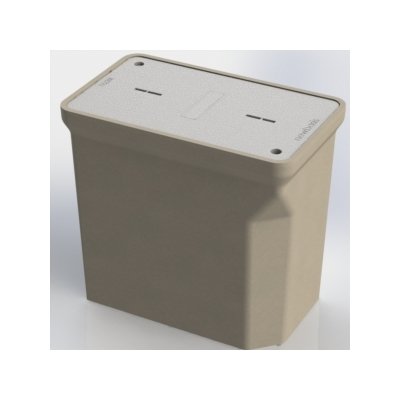

PCX™ 27 1/8 in. Opening Length Polymer Concrete Assembly
PCX™ 27 1/8 in. Opening Length Polymer Concrete Assembly
SKU:HAN-1828c8
Enhance infrastructure durability with PCX™ Polymer Concrete Assembly. Compliant with WUC 3.6 and ANSI/SCTE 77 standards, offering high impact resistance and custom options.
Regular price
$1,899.99
Regular price
Sale price
$1,899.99
Unit price
per
Initiate Order
PCX™ 27 1/8 in. Opening Length Polymer Concrete Assembly
$1,899.99
Quantity: 1
Claim Your Seller Account
PCX™ 27 1/8 in. Opening Length Polymer Concrete Assembly
$1,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your infrastructure with the PCX™ Polymer Concrete Assembly. Made of advanced non-metallic, UV resistant material, this assembly meets WUC 3.6 and ANSI/SCTE 77 standards for strength and durability. Featuring a skid-resistant cover, integral drain holes, and a drop-in nameplate, it offers high impact resistance and imperviousness to chemicals and moisture, making it ideal for incidental traffic use. Each assembly includes a standard nameplate and options for customizations like Tier 22 Load Rating and different bolt types for flexibility and adaptability.
Product Specifications
Available Options
Tier 22 Load Rating, Penta Bolts, Telephone EMS, Power EMS, Custom Nameplate Installed, Custom Nameplate Shipped Separately, Standard Nameplate Installed, Standard Nameplate Shipped Separately
Dimensional Attributes Height
36 in
Dimensional Attributes Inside Depth
33 in
Dimensional Attributes Inside Length
27 1/8 in | 33 9/16 in
Dimensional Attributes Inside Width For 27 18 In Length
15 1/2 in
Dimensional Attributes Inside Width For 33 916 In Length
21 15/16 in
Dimensional Attributes Length
36 in
Dimensional Attributes Width
24 in
Features
Drop-In nameplateShipped assembledSkid resistant coverCast-in floating nut box - Integral drain holes
Load Ratings
Incidental Traffic - Parking Lot, Sidewalk Conforms to:WUC 3.6ASTM C 857ANSI/SCTE 77
Material Properties
Advanced composite: Very high strength to weight ratioNon-metallicNon-conductiveUV ResistantHigh impact resistantImpervious to chemicals and moistureMaterials tested in accordance with ASTM D 543 and ASTM D 570
Nameplates
One standard nameplate included with each assembly, installed at the factory or easily installed in the field. Custom nameplates are available. Contact customer service.Standard NameplatesElectricTelephoneFiber OpticWaterStreet LightingBroadbandTrafficCATVTraffic SignalCommunications
Note
Standard shipping includes van delivery of pallet quantities to the lower 48 states. Partial pallet quantities and flat bed shipping available at an additional cost.
Specifications Assembly Weight
428.1 lb
Specifications Bolt Head Type
Hex
Specifications Bolt Material
Stainless Steel
Specifications Bolt Size
3/8 in
Specifications Box Weight
330.1 lb
Specifications Brand
newbasis, PCX™
Specifications Coefficient Of Friction Dry Per American Society
1.085
Specifications Compressive Strength
11500 psi
Specifications Cover Weight
98 lb
Specifications Flexural Strength
4000 psi
Specifications Industry Standardscertifications
WUC 3.6, ANSI/SCTE 77 - ''T15/20K"
Specifications Loaded Pallet Weight
1775 lb
Specifications Material
Polymer Concrete
Specifications Packaging
Steel Banding, Edge Protection
Specifications Pallet Quantity
4
Specifications Side
Straight
Specifications Style
Open Bottom
Specifications Type
Polymer Concrete Assembly
