PCX™ Polymer Concrete Assembly - 26 1/16 in. Opening Length
PCX™ Polymer Concrete Assembly - 26 1/16 in. Opening Length
SKU:HAN-3f62be
Durable PCX™ Polymer Concrete Assembly - Straight Sides, Open Bottom Design, Complies with WUC 3.6, ANSI/SCTE 77 Standards
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
PCX™ Polymer Concrete Assembly - 26 1/16 in. Opening Length
$349.99
Quantity: 1
Claim Your Seller Account
PCX™ Polymer Concrete Assembly - 26 1/16 in. Opening Length
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

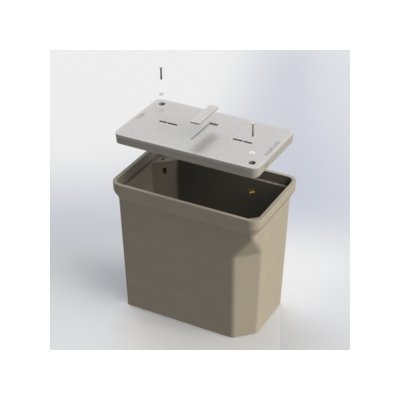

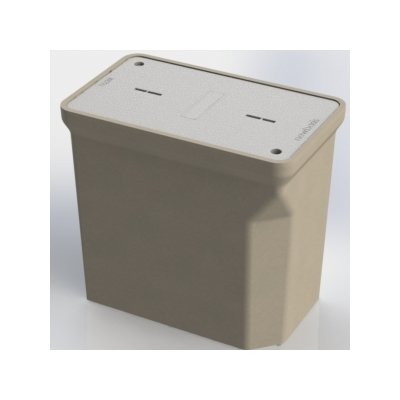

The PCX™ Polymer Concrete Assembly, featuring straight sides and an open bottom design, is a robust solution engineered for reliability and durability. Compliant with WUC 3.6, ANSI/SCTE 77 - 'T15/20K' standards, and boasting a compressive strength of 11500 psi, this assembly ensures optimal performance. With a skid-resistant cover, cast-in floating nut box, and integral drain holes, it offers enhanced usability and longevity. Customizable nameplates and optional accessories cater to varied needs, making it a versatile choice for institutional and government applications.
Product Specifications
Available Options
Tier 22 Load Rating, Penta Bolts, Telephone EMS, Power EMS, Custom Nameplate Installed, Custom Nameplate Shipped Separately, Standard Nameplate Installed, Standard Nameplate Shipped Separately
Dimensional Attributes Height
12 in
Dimensional Attributes Inside Depth
10 in
Dimensional Attributes Inside Length
26 1/16 in | 29 1/16 in
Dimensional Attributes Inside Width For 26 116 In Length
13 1/16 in
Dimensional Attributes Inside Width For 29 116 In Length
16 1/16 in
Dimensional Attributes Length
30 in
Dimensional Attributes Width
17 in
Features
Drop-In nameplateShipped assembledSkid resistant coverCast-in floating nut box - Integral drain holes
Load Ratings
Incidental Traffic - Parking Lot, Sidewalk Conforms to:WUC 3.6ASTM C 857ANSI/SCTE 77
Material Properties
Advanced composite: Very high strength to weight ratioNon-metallicNon-conductiveUV ResistantHigh impact resistantImpervious to chemicals and moistureMaterials tested in accordance with ASTM D 543 and ASTM D 570
Nameplates
One standard nameplate included with each assembly, installed at the factory or easily installed in the field. Custom nameplates are available. Contact customer service.Standard NameplatesElectricTelephoneFiber OpticWaterStreet LightingBroadbandTrafficCATVTraffic SignalCommunications
Note
Standard shipping includes van delivery of pallet quantities to the lower 48 states. Partial pallet quantities and flat bed shipping available at an additional cost.
Specifications Assembly Weight
110.2 lb
Specifications Bolt Head Type
Hex
Specifications Bolt Material
Stainless Steel
Specifications Bolt Size
3/8 in
Specifications Box Weight
60.7 lb
Specifications Brand
newbasis, PCX™
Specifications Coefficient Of Friction Dry Per American Society
1.085
Specifications Compressive Strength
11500 psi
Specifications Cover Weight
49.5 lb
Specifications Flexural Strength
4000 psi
Specifications Industry Standardscertifications
WUC 3.6, ANSI/SCTE 77 - ''T15/20K"
Specifications Loaded Pallet Weight
1035 lb
Specifications Material
Polymer Concrete
Specifications Packaging
Steel Banding, Edge Protection
Specifications Pallet Quantity
9
Specifications Side
Straight
Specifications Style
Open Bottom
Specifications Type
Polymer Concrete Assembly
