PeeWee Ceramic-to-Metal Hermetic Connector
PeeWee Ceramic-to-Metal Hermetic Connector
SKU:HIG-6a401f
High voltage PeeWee Ceramic-to-Metal Hermetic Connector for robust interconnections in demanding environments.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
PeeWee Ceramic-to-Metal Hermetic Connector
$59.99
Quantity: 1
Claim Your Seller Account
PeeWee Ceramic-to-Metal Hermetic Connector
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

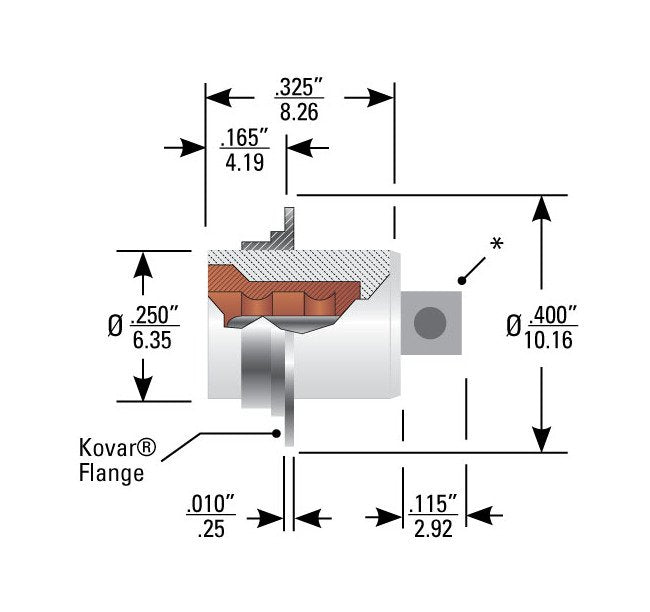

The PeeWee Ceramic-to-Metal Hermetic Connector, part of the High Voltage Hermetic Connectors line, is designed for high voltage applications requiring compact electronic packaging. Featuring a unique Advanced interface sealing system, this connector can handle 12 kVDC at altitudes up to 70,000 feet and temperatures ranging from -55 to +125°C. With a front mount solder flange and 99% pure copper braze, it ensures reliable performance in demanding environments. Ideal for interconnecting lasers, photomultipliers, power supplies, and TWT applications.
Product Specifications
Application 0
LasersPhotomultipliersPower SuppliesTWT
Contact Properties Contact Diameter
0.030 in | 0.762 mm
Contact Properties Contact Size
24 AWG
Contact Properties Contact Type
Male
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Brazing Material
99% Pure Copper Braze
Specifications Coupling Style
Push-Pull
Specifications Insulator Material
Ceramic
Specifications Mating Compatibility
Mates with all non-threaded Pee-Wee series plug cable assemblies.
Specifications Maximum Leak Rate Helium
1x10-8 cc/sec
Specifications Number Of Contacts
1
Specifications Operating Temperature
-55 to 125 ºC
Specifications Panel Mounting Style
Front Mount Solder Flange
Specifications Sealed Receptacle
Yes
Specifications Series
PeeWee
Specifications Standardnon Standard
Standard Part
Specifications Test Voltage
18 kVDC
Specifications Voltage Rating
12 kVDC
