PeeWee Series 12 kVDC Double-Ended Right Angle Cable Assembly
PeeWee Series 12 kVDC Double-Ended Right Angle Cable Assembly
SKU:HIG-b32a04
High-voltage PeeWee Series connector for dense electronic packaging, rated at 12 kVDC with threaded coupling.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
PeeWee Series 12 kVDC Double-Ended Right Angle Cable Assembly
$29.99
Quantity: 1
Claim Your Seller Account
PeeWee Series 12 kVDC Double-Ended Right Angle Cable Assembly
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The PeeWee Series 12 kVDC Double-Ended Right Angle Cable Assembly is a high-voltage, subminiature connector designed for applications requiring dense electronic packaging. Featuring Teledyne Reynold's Advanced Interface™ sealing method, this non-standard part can withstand 18 kVDC test voltage, operates at a temperature range of -55°C to 125°C, and is rated for use at altitudes up to 70,000 feet. With threaded coupling style and compatibility with all PeeWee series components, including threaded receptacles and cable assemblies, this connector offers reliable performance in demanding environments.
Product Specifications
Application 0
LasersPhotomultipliersPower SuppliesTWT
Body Properties Coupling Nut Material
Plastic
Cable Wire Properties Wire Diameter
0.060 in
Contact Properties Contact Diameter
0.030 in | 0.762 mm
Contact Properties Contact Size
24 AWG
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Assembly Type

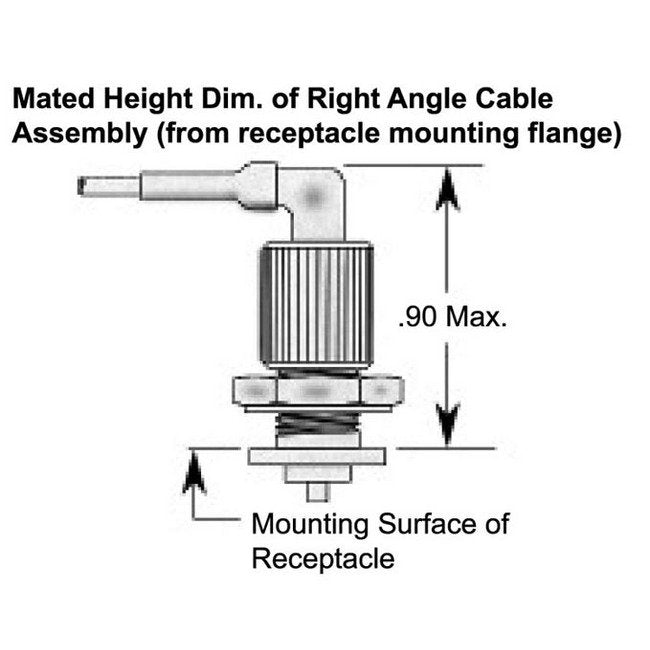

Double-Ended Right Angle Plug Cable Assembly
Specifications Coupling Style
Threaded
Specifications Current Rating
1.6 Amp
Specifications Encapsulation
Back end of connector is encapsulated with silicone rubber
Specifications Export Classification
TBD
Specifications Insulator Material
Plastic
Specifications Mating Compatibility
Mates with all Pee-Wee series threaded receptacles and threaded receptacles cable assemblies.
Specifications Operating Temperature
-55 to 125 ºC
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
N/A
Specifications Series
PeeWee
Specifications Standardnon Standard
Non-standard Part
Specifications Test Voltage
18 kVDC
Specifications Voltage Rating
12 kVDC
Specifications Wire Insulation
Silicone Coated FEP
