PeeWee Series 12kVDC Push Pull Right Angle Cable Assembly
PeeWee Series 12kVDC Push Pull Right Angle Cable Assembly
SKU:HIG-f1c793

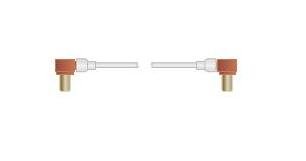

High-voltage PeeWee Series 12kVDC Push Pull Right Angle Cable Assembly for dense electronic applications. Reliable, durable contact design for demanding environments.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
PeeWee Series 12kVDC Push Pull Right Angle Cable Assembly
$39.99
Quantity: 1
Claim Your Seller Account
PeeWee Series 12kVDC Push Pull Right Angle Cable Assembly
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The PeeWee Series 12kVDC Plug Cable Assembly offers subminiature, high-voltage connectivity for dense electronic applications. Featuring Teledyne Reynolds' patented Advanced Interface™ for high voltage sealing, this connector is rated at 12 kVDC, suitable for altitudes up to 70,000 ft. With a temperature range of -55°C to 125°C, this assembly is ideal for lasers, power supplies, and photomultipliers. The contact design includes BeCu with Gold Plating, ensuring reliable performance and durability in demanding environments.
Product Specifications
Application 0
LasersPower SuppliesPhotomultipliersTWT
Body Properties Coupling Nut Material
Plastic
Cable Wire Properties Wire Diameter
0.060 in
Contact Properties Contact Design
Split Finger, Closed Entry, Molded in Place
Contact Properties Contact Diameter
0.030 in | 0.762 mm
Contact Properties Contact Material
BeCu, Gold Plate with CRES Hood
Contact Properties Contact Size
24 AWG
Contact Properties Contact Type
Female
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Double-Ended Right Angle Plug Cable Assembly
Specifications Coupling Style
Push-Pull
Specifications Current Rating
1.6 Amp
Specifications Encapsulation
Back end of connector is encapsulated with silicone rubber
Specifications Export Classification
TBD
Specifications Insulator Material
Plastic
Specifications Mating Compatibility
Mates with all non-threaded Pee-Wee series receptacles and receptacles cable assemblies.
Specifications Operating Temperature
-55 to 125 ºC
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
N/A
Specifications Series
PeeWee
Specifications Standardnon Standard
Standard Part
Specifications Test Voltage
18 kVDC
Specifications Voltage Rating
12 kVDC
Specifications Wire Insulation
Silicone Coated FEP NOMEX®
Specifications Wire Pn
178-8066
