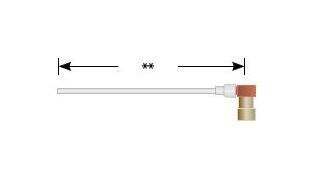

PeeWee Series 12kVDC Right Angle Receptacle Cable Assembly
PeeWee Series 12kVDC Right Angle Receptacle Cable Assembly
SKU:HIG-36ac6c
PeeWee Series 12kVDC Right Angle Cable: High-voltage, compact design for reliable performance in demanding environments.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
PeeWee Series 12kVDC Right Angle Receptacle Cable Assembly
$99.99
Quantity: 1
Claim Your Seller Account
PeeWee Series 12kVDC Right Angle Receptacle Cable Assembly
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The PeeWee Series 12kVDC Right Angle Receptacle Cable Assembly is designed for high voltage applications requiring compact connectors. Utilizing Teledyne Reynold's patented Advanced Interface™ method, it ensures a secure seal at 70,000 ft altitude. With a current rating of 1.6 Amp and operating temperature range of -55 to 125 °C, this assembly guarantees reliable performance in challenging environments. Featuring a push-pull coupling style and gold-plated BeCu contacts, it offers optimal connectivity for lasers, photomultipliers, and power supplies.
Product Specifications
Application 0
LasersPhotomultipliersPower SuppliesTWT
Body Properties Coupling Nut Material
Plastic
Contact Properties Contact Design
Spherical Radius, Molded in Place
Contact Properties Contact Diameter
0.030 in | 0.762 mm
Contact Properties Contact Material
BeCu, Gold Plated
Contact Properties Contact Size
24 AWG
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Single-Ended Right Angle Receptacle Cable Assembly
Specifications Coupling Style
Push-Pull
Specifications Current Rating
1.6 Amp
Specifications Encapsulation
Back end of connector is encapsulated with silicone rubber
Specifications Export Classification
TBD
Specifications Insulator Material
Plastic
Specifications Interface Seal
Silicone Rubber
Specifications Mating Compatibility
Mates with threaded plug assemblies.
Specifications Operating Temperature
-55 to 125 ºC
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
Yes
Specifications Series
PeeWee
Specifications Standardnon Standard
Standard Part
Specifications Test Voltage
18 kVDC
Specifications Voltage Rating
12 kVDC
Specifications Wire Insulation
Silicone Coated FEP
Specifications Wire Pn
178-8066
