PeeWee Series High Voltage Cable Assembly, Threaded Coupling, 12 kVDC
PeeWee Series High Voltage Cable Assembly, Threaded Coupling, 12 kVDC
SKU:HIG-23704c
High-voltage PeeWee Series cable assembly with advanced sealing technology, threaded coupling, and 12 kVDC rating for reliable performance in demanding applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
PeeWee Series High Voltage Cable Assembly, Threaded Coupling, 12 kVDC
$29.99
Quantity: 1
Claim Your Seller Account
PeeWee Series High Voltage Cable Assembly, Threaded Coupling, 12 kVDC
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

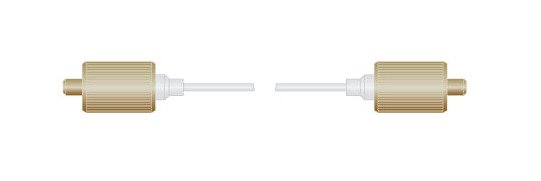

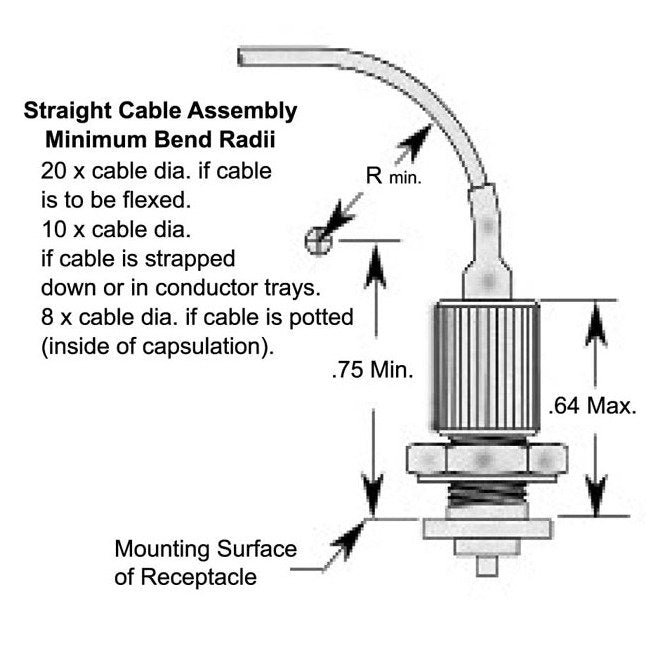

The PeeWee Series Plug Cable Assembly features advanced sealing technology for high voltage applications where dense electronic packaging is crucial. With a 12 kVDC rating at 70,000 feet altitude and a wide temperature range of -55 °C to 125 °C, this double-ended assembly ensures reliable performance. It utilizes Teledyne Reynold's patented Advanced Interface™ method for sealing, coupled with a threaded coupling style for secure connections. Encapsulated with silicone rubber and with mating compatibility across Pee-Wee series components, this non-standard part is ideal for lasers, photomultipliers, power supplies, and TWT applications.
Product Specifications
Application 0
LasersPhotomultipliersPower SuppliesTWT
Body Properties Coupling Nut Material
Plastic
Cable Wire Properties Wire Diameter
0.050 in
Contact Properties Contact Diameter
0.030 in | 0.762 mm
Contact Properties Contact Size
24 AWG
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Double-Ended Plug Cable Assembly
Specifications Coupling Style
Threaded
Specifications Current Rating
1.6 Amp
Specifications Encapsulation
Back end of connector is encapsulated with silicone rubber
Specifications Export Classification
TBD
Specifications Insulator Material
Plastic
Specifications Mating Compatibility
Mates with all Pee-Wee series threaded receptacles and threaded receptacles cable assemblies.
Specifications Operating Temperature
-55 to 125 ºC
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
N/A
Specifications Series
PeeWee
Specifications Standardnon Standard
Non-standard Part
Specifications Test Voltage
18 kVDC
Specifications Voltage Rating
12 kVDC
Specifications Wire Insulation
Etched FEP
Specifications Wire Pn
178-8118
