PeeWee Series High Voltage Plug Cable Assembly
PeeWee Series High Voltage Plug Cable Assembly
SKU:HIG-41960e
High voltage double-ended plug cable assembly rated at 12 kVDC, 70,000 ft altitude, with push-pull coupling and -55 to 125 °C temperature range.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
PeeWee Series High Voltage Plug Cable Assembly
$129.99
Quantity: 1
Claim Your Seller Account
PeeWee Series High Voltage Plug Cable Assembly
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

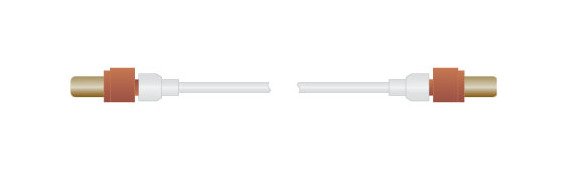

The PeeWee Series Plug Cable Assembly features a double-ended design with a push-pull coupling, ideal for high voltage applications requiring compact electronic integration. Utilizing Teledyne Reynold's Advanced Interface⢠technology, this assembly is rated at 12 kVDC up to 70,000 feet altitude, withstanding temperatures from -55 °C to 125 °C. With a current rating of 1.6 Amp and a test voltage of 18 kVDC, this connector is compatible with all non-threaded PeeWee series receptacles. The encapsulated back end, plastic insulator, and gold-plated BeCu contacts ensure reliable performance in demanding environments.
Product Specifications
Application 0
PhotomultipliersLasersPower SuppliesTWT
Body Properties Coupling Nut Material
Plastic
Cable Wire Properties Wire Diameter
0.050 in
Contact Properties Contact Design
Split Finger, Closed Entry, Molded in Place
Contact Properties Contact Diameter
0.030 in | 0.762 mm
Contact Properties Contact Material
BeCu, Gold Plate with CRES Hood
Contact Properties Contact Size
24 AWG
Contact Properties Contact Type
Female
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Double-Ended Plug Cable Assembly
Specifications Coupling Style
Push-Pull
Specifications Current Rating
1.6 Amp
Specifications Encapsulation
Back end of connector is encapsulated with silicone rubber
Specifications Export Classification
TBD
Specifications Insulator Material
Plastic
Specifications Mating Compatibility
Mates with all non-threaded Pee-Wee series receptacles and receptacles cable assemblies.
Specifications Operating Temperature
-55 to 125 ºC
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
N/A
Specifications Series
PeeWee
Specifications Standardnon Standard
Non-standard Part
Specifications Test Voltage
18 kVDC
Specifications Voltage Rating
12 kVDC
Specifications Wire Insulation
Etched FEP
Specifications Wire Pn
178-8111
