PeeWee Series High Voltage Right Angle Plug Cable Assembly
PeeWee Series High Voltage Right Angle Plug Cable Assembly
SKU:HIG-185d81
High-voltage right angle plug cable assembly with advanced sealing for secure connections in dense electronic packaging. Rated at 12 kVDC with threaded coupling.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
PeeWee Series High Voltage Right Angle Plug Cable Assembly
$49.99
Quantity: 1
Claim Your Seller Account
PeeWee Series High Voltage Right Angle Plug Cable Assembly
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

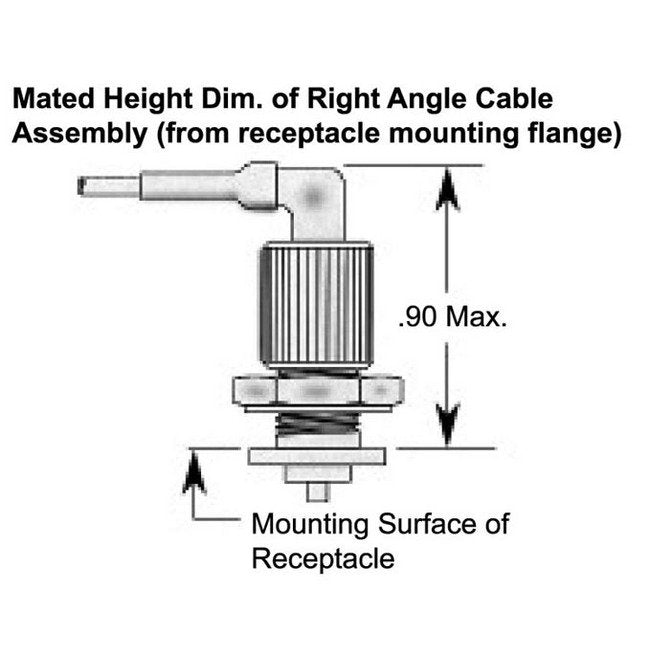

The PeeWee Series High Voltage Right Angle Plug Cable Assembly is a subminiature connector designed for high voltage applications requiring dense electronic packaging. Featuring Teledyne Reynold's patented Advanced Interface™ sealing method, this connector is rated at 12 kVDC at 70,000 feet altitude with a wide temperature range of -55°C to 125°C. With a double-ended right angle design and threaded coupling style, it ensures secure connections and is compatible with various PeeWee series receptacles and cable assemblies. The connector's construction includes encapsulation with silicone rubber at the back end, insulating plastic material, and compliance with multiple specifications, making it ideal for lasers, photomultipliers, power supplies, and TWT applications.
Product Specifications
Application 0
LasersPhotomultipliersPower SuppliesTWT
Body Properties Coupling Nut Material
Plastic
Cable Wire Properties Wire Diameter
0.050 in
Contact Properties Contact Diameter
0.030 in | 0.762 mm
Contact Properties Contact Size
24 AWG
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Double-Ended Right Angle Plug Cable Assembly
Specifications Coupling Style
Threaded
Specifications Current Rating
1.6 Amp
Specifications Encapsulation
Back end of connector is encapsulated with silicone rubber
Specifications Export Classification
TBD
Specifications Insulator Material
Plastic
Specifications Mating Compatibility
Mates with all Pee-Wee series threaded receptacles and threaded receptacles cable assemblies.
Specifications Operating Temperature
-55 to 125 ºC
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
N/A
Specifications Series
PeeWee
Specifications Standardnon Standard
Non-standard Part
Specifications Test Voltage
18 kVDC
Specifications Voltage Rating
12 kVDC
Specifications Wire Insulation
Etched FEP W/NOMEX
Specifications Wire Pn
178-8118
