Pelonis Technologies 5V Rectangular Ultra-Thin Flexible Heater
Pelonis Technologies 5V Rectangular Ultra-Thin Flexible Heater
SKU:ULT-68910e
Experience efficient and safe heating with the Pelonis 5V Rectangular Ultra-Thin Flexible Heater. CE, CRUUS, RoHS compliant for quality assurance.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Pelonis Technologies 5V Rectangular Ultra-Thin Flexible Heater
$39.99
Quantity: 1
Claim Your Seller Account
Pelonis Technologies 5V Rectangular Ultra-Thin Flexible Heater
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

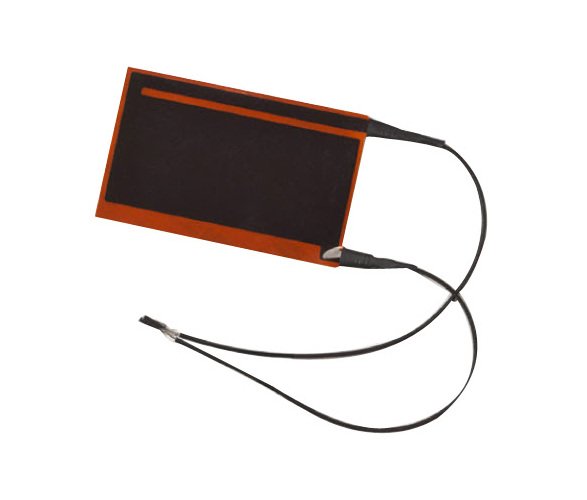

Enhance your heating solutions with the Pelonis Technologies 5V Rectangular Ultra-Thin Flexible Heater. This innovative heater features a power density of 0.13 W/cm² and a current of 0.42 A, providing reliable and efficient heating in a compact design. With industry certifications like CE, CRUUS, RoHS compliance, and more, this heater ensures safety and quality performance. The Nano Carbon and Silicon materials used offer durability and flexibility, making it suitable for various applications.
Product Specifications
Note Note
Standard Model. The delivery time for this model is shorter.If the heater requires a higher heat-up rate or higher power density (>0.8W/cm2), make sure a temperature sensor or thermostat is installed to prevent overheating causing damage to products.Dimensions and specifications are subject to change without notice.
Specifications Current
0.42 A
Specifications Dc Voltage
5 V
Specifications Heater Material
Nano Carbon | Silicon
Specifications Industry Standardscertifications
CE Recognized | CRU®US Recognized | Reach Compliant | Restriction of Hazardous Substances (RoHS) Compliant

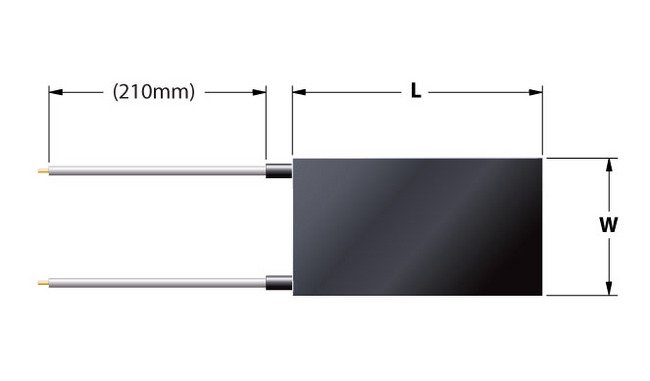

Specifications Lead Wire Length
210 mm
Specifications Length
40 mm
Specifications Note For Lead Wire Length
The length of the lead wires will be 210 mm unless otherwise specified.
Specifications Note For Reference Temperature Rise
Please note that the Temperature Rise value is for reference only. The actual temperature rise is dependent on the ambient environment and the application of the flexible heater.
Specifications Power
2.1 Watts
Specifications Power Density
0.13 W/cm²
Specifications Reference Temperature Rise
30 ºC
Specifications Resistance
11.9 Ohm
Specifications Shape
Rectangular
Specifications Type
Nano Carbon (STANDARD)
Specifications Width
40 mm
