Pelonis Technologies Servobox SE-A180A Planetary Reducer Gearbox
Pelonis Technologies Servobox SE-A180A Planetary Reducer Gearbox
SKU:PLA-f29962
High-torque Pelonis Planetary Reducer Gearbox with Ps backlash class & 90%+ efficiency for precision industrial applications.
Regular price
$1,899.99
Regular price
Sale price
$1,899.99
Unit price
per
Initiate Order
Pelonis Technologies Servobox SE-A180A Planetary Reducer Gearbox
$1,899.99
Quantity: 1
Claim Your Seller Account
Pelonis Technologies Servobox SE-A180A Planetary Reducer Gearbox
$1,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Pelonis Technologies Servobox SE-A180A 3-Stage Planetary Reducer Gearbox offers unparalleled performance with a high torque output of 993 N·m, ensuring reliable operation in demanding industrial applications. With a Ps backlash class and a maximum input speed of 4000 rpm, this gearbox delivers superior efficiency exceeding 90%. Its robust construction using high tensile strength alloy steel guarantees durability and stability. The modular design allows for customizable connections, achieving speed reduction ratios that surpass 1/10000. Ideal for applications requiring precision, high torque, and efficiency.
Ready to Grow Without Cash Flow Constraints?

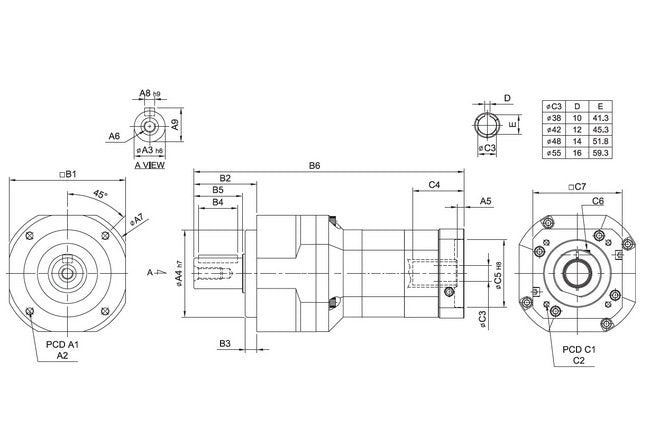

Product Specifications
Dimensions Dimension A1
184 mm
Dimensions Dimension A2
M12 x P1.75
Dimensions Dimension A3
55 mm
Dimensions Dimension A4
160 mm
Dimensions Dimension A5
10 mm
Dimensions Dimension A6
M14 x P2.0
Dimensions Dimension A7
215 mm
Dimensions Dimension A8
16 mm
Dimensions Dimension A9
59 mm
Dimensions Dimension B1
180 mm
Dimensions Dimension B2
106 mm
Dimensions Dimension B3
20 mm
Dimensions Dimension B4
70 mm
Dimensions Dimension B5
82 mm
Dimensions Dimension B6
425 mm
Dimensions Dimension C1
145 mm | 165 mm | 215 mm
Dimensions Dimension C2
M8 | M10 | M12
Dimensions Dimension C3
32 mm | 35 mm | 38 mm
Dimensions Dimension C4
84.5 mm
Dimensions Dimension C5
110 mm | 130 mm | 180 mm
Dimensions Dimension C6
M10 x P1.5
Dimensions Dimension C7
146 mm | 150 mm | 190 mm
Features Features
High TorqueHigher output torque is compared to spur gear planetary gear reducers.High StabilityEmploys high tensile strength alloy steel. Gear hardening is made for the entire gear which extends gear service life and maintains high accuracy after a long period of operation.High Speed Reduction RatioThe gear reducer is a modular design. The planetary gear box can be connected. The speed reduction ratio can reach over 1/10000.
Specifications Backlash
⤠5 arc·min
Specifications Backlash Class
Ps
Specifications Efficiency
⥠90 %
Specifications Lubrication
Synthetic Grease
Specifications Mass Moments Of Inertia
0.12 kg·cm²
Specifications Maximum Acceleration Torque T2b
1.8 Times of Rated Output Torque
Specifications Maximum Axial Force F2ab
7800 N
Specifications Maximum Input Speed N1b
4000 rpm
Specifications Maximum Output Torque Emergency Stop Torque T2not
3 Times of Rated Output Torque
Specifications Maximum Radial Force F2rb
15600 N
Specifications Model
180
Specifications Mounting Position
Any
Specifications Noise Level
⤠67 dB
Specifications Operating Temperature
-25 to +90 ºC
Specifications Output Bearing
Standard (Keyway)
Specifications Protection Class
Ingress Protection (IP65)
