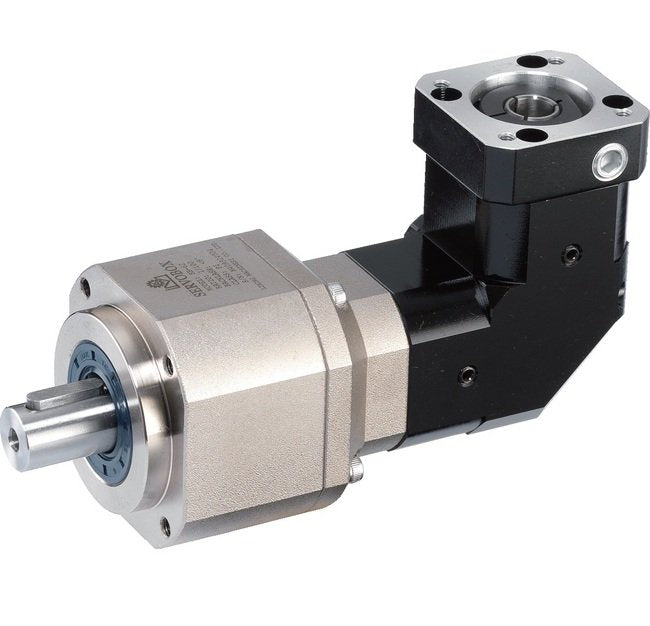

Pelonis Technologies Servobox SEL180 2-Stage Planetary Reducer Gearbox

Pelonis Technologies Servobox SEL180 2-Stage Planetary Reducer Gearbox

PLA-32f0b4

High-performance 2-Stage Planetary Reducer Gearbox with solid output shaft bearing, high torque, and exceptional efficiency

$2,799.99
$2,799.99
Sale

Initiate Order

Pelonis Technologies Servobox SEL180 2-Stage Planetary Reducer Gearbox

Pelonis Technologies Servobox SEL180 2-Stage Planetary Reducer Gearbox

$2,799.99

Quantity: 1

Claim Your Seller Account

Pelonis Technologies Servobox SEL180 2-Stage Planetary Reducer Gearbox

Pelonis Technologies Servobox SEL180 2-Stage Planetary Reducer Gearbox

$2,799.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Pelonis Technologies Servobox SEL180 2-Stage Planetary Reducer Gearbox is a high-performance solution designed for precision applications. With a solid output shaft bearing and Ps backlash class, this gearbox offers exceptional stability and efficiency. Featuring a high torque capacity of 1070 N·m and an operating temperature range of -25 to +90 °C, it ensures reliable performance in diverse environments. Additionally, with an efficiency exceeding 92% and a service life exceeding 15,000 hours on continuous operation, this gearbox is a dependable choice for industrial and institutional applications.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

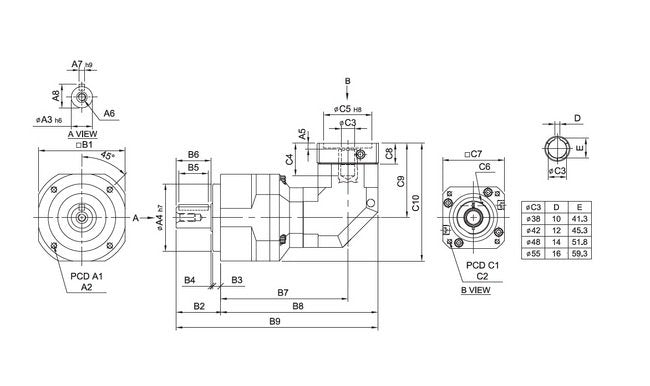

Product Specifications

Dimensions Dimension A1
184 mm
Dimensions Dimension A2
M12 x P1.75
Dimensions Dimension A3
55 mm
Dimensions Dimension A4
160 mm
Dimensions Dimension A5
10 mm
Dimensions Dimension A6
M14 x P2.0
Dimensions Dimension A7
16 mm
Dimensions Dimension A8
59 mm
Dimensions Dimension B1
180 mm
Dimensions Dimension B2
106 mm
Dimensions Dimension B3
20 mm
Dimensions Dimension B4
4 mm
Dimensions Dimension B5
70 mm
Dimensions Dimension B6
82 mm
Dimensions Dimension B7
249.5 mm
Dimensions Dimension B8
320.5 mm
Dimensions Dimension B9
426.5 mm
Dimensions Dimension C1
145 mm | 165 mm | 215 mm
Dimensions Dimension C10
255.7 mm
Dimensions Dimension C2
M8 | M10 | M12
Dimensions Dimension C3
32 mm | 35 mm | 38 mm
Dimensions Dimension C4
85 mm
Dimensions Dimension C5
110 mm | 130 mm | 180 mm
Dimensions Dimension C6
M10 x P1.5
Dimensions Dimension C7
146 mm | 180 mm | 190 mm
Dimensions Dimension C8
35.5 mm
Dimensions Dimension C9
165.7 mm
Features Features
High TorqueHigher output torque is compared to spur gear planetary gear reducers.High StabilityEmploys high tensile strength alloy steel. Gear hardening is made for the entire gear which extends gear service life and maintains high accuracy after a long period of operation.High Speed Reduction RatioThe gear reducer is a modular design. The planetary gear box can be connected. The speed reduction ratio can reach over 1/10000.
Specifications Backlash
≤ 4 arc·min
Specifications Backlash Class
Ps
Specifications Efficiency
≥ 92 %
Specifications Lubrication
Synthetic Grease
Specifications Mass Moments Of Inertia
21.2 kg·cm²
Specifications Maximum Acceleration Torque T2b
1.8 Times of Rated Output Torque
Specifications Maximum Axial Force F2ab
7800 N
Specifications Maximum Input Speed N1b
4000 rpm
Specifications Maximum Output Torque Emergency Stop Torque T2not
3 Times of Rated Output Torque
Specifications Maximum Radial Force F2rb
15600 N
Specifications Model
180
