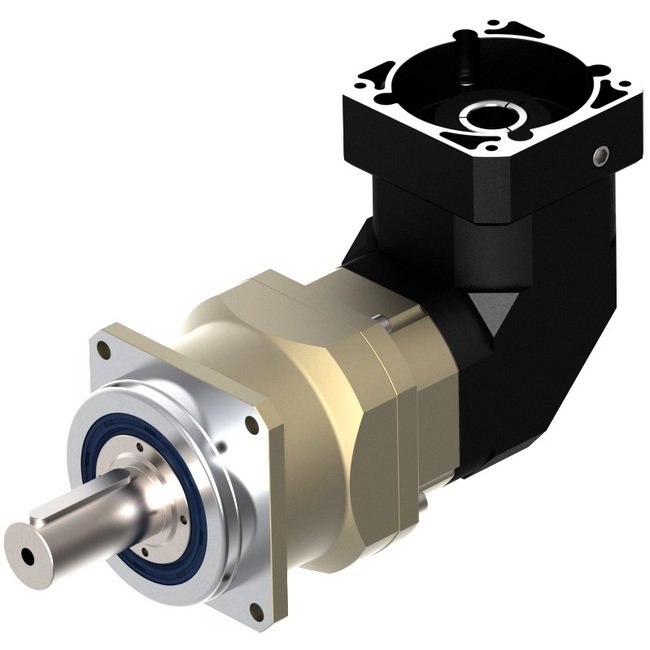

Pelonis Technologies SFL180 Planetary Reducer Gearbox
Pelonis Technologies SFL180 Planetary Reducer Gearbox
SKU:PLA-518e95
Experience precision and reliability with the Pelonis SFL180 Planetary Reducer Gearbox featuring low noise, high rigidity, and smooth operation.
Regular price
$2,099.99
Regular price
Sale price
$2,099.99
Unit price
per
Initiate Order
Pelonis Technologies SFL180 Planetary Reducer Gearbox
$2,099.99
Quantity: 1
Claim Your Seller Account
Pelonis Technologies SFL180 Planetary Reducer Gearbox
$2,099.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Pelonis Technologies SFL180 2-Stage Planetary Reducer Gearbox is engineered for precision performance, featuring helical gears for reduced noise, backlash of ≤ 3 arc·min for precise alignment, and integrant needle roller bearings for high rigidity and torque. With a rated output torque of 1118 N·m and maximum acceleration torque of 1.8 times the rated output torque, this gearbox delivers exceptional reliability and performance. Its one-piece helical gear design ensures smooth operation, high output torque, and low backlash, while the full needle roller bearings enhance structural rigidity and service life. The collet locking mechanism and integrated planetary arm bracket further contribute to its durability and accuracy, making it an ideal choice for industrial applications.

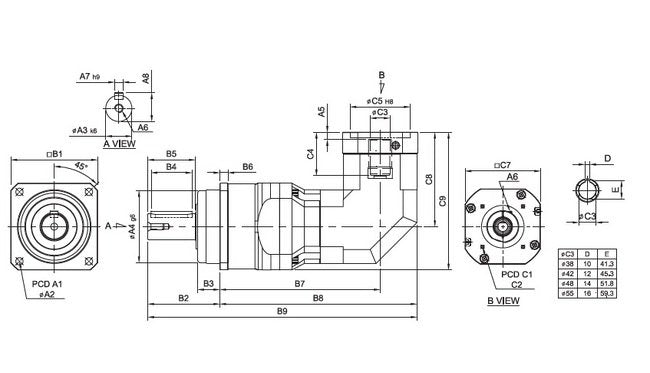

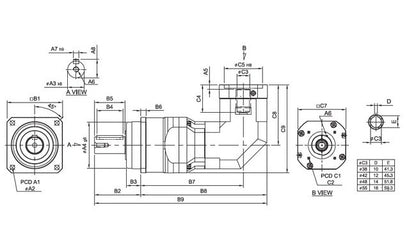

Product Specifications
Dimensions Dimension A1
215 mm
Dimensions Dimension A2
13 mm
Dimensions Dimension A3
55 mm
Dimensions Dimension A4
160 mm
Dimensions Dimension A5
10 mm
Dimensions Dimension A6
M14 x P2.0
Dimensions Dimension A7
16 mm
Dimensions Dimension A8
59 mm
Dimensions Dimension B1
180 mm
Dimensions Dimension B2
112 mm
Dimensions Dimension B3
26 mm
Dimensions Dimension B4
70 mm
Dimensions Dimension B5
82 mm
Dimensions Dimension B6
15 mm
Dimensions Dimension B7
280 mm
Dimensions Dimension B8
351 mm
Dimensions Dimension B9
463 mm
Dimensions Dimension C1
145 mm | 165 mm | 215 mm
Dimensions Dimension C2
M8 | M10 | M12
Dimensions Dimension C3
28 mm | 32 mm | 35 mm
Dimensions Dimension C4
85 mm
Dimensions Dimension C5
110 mm | 130 mm | 180 mm
Dimensions Dimension C6
M10 x P1.5
Dimensions Dimension C7
146 mm | 150 mm | 190 mm
Dimensions Dimension C8
165.7 mm
Dimensions Dimension C9
255.7 mm
Features Features
High Load-Bearing CapacityHigh load-bearing capacity is achieved by a dual tapper bearing.One-Piece Helical Gear BoxThe gear box and internal ring gear are a one-piece construction design. The speed reduction mechanism employs helical gears that provide two times the meshing rate of teeth compared to regular spur gears. It operates very smoothly, has low noise, high output torque, and low backlash.Full Needle Roller Bearings DesignThe planetary gear transmission employs full needle roller bearings without a retainer to increase the contact surface. This greatly improves structural rigidity and service life.Collet Locking MechanismThe input-end and the motor are coupled through a collet locking mechanism. The mechanism is dynamically balanced to ensure concentricity and balance on the connection and has no backlash for power transmission while running at a high speed.Integrated Planetary Arm BracketThe planetary arm bracket and the output shaft are a one-piece construction design that increases torsional rigidity and accuracy.
Specifications Backlash
⤠4 arc·min
Specifications Backlash Class
Ps
Specifications Efficiency
⥠92 %
Specifications Lubrication
Synthetic Grease
Specifications Mass Moments Of Inertia
23.1 kg·cm²
Specifications Maximum Acceleration Torque T2b
1.8 Times of Rated Output Torque
Specifications Maximum Axial Force F2ab
15180 N
Specifications Maximum Input Speed N1b
4000 rpm
Specifications Maximum Output Torque Emergency Stop Torque T2not
3 Times of Rated Output Torque
Specifications Maximum Radial Force F2rb
17860 N
Specifications Model
180
Specifications Mounting Position
Any
