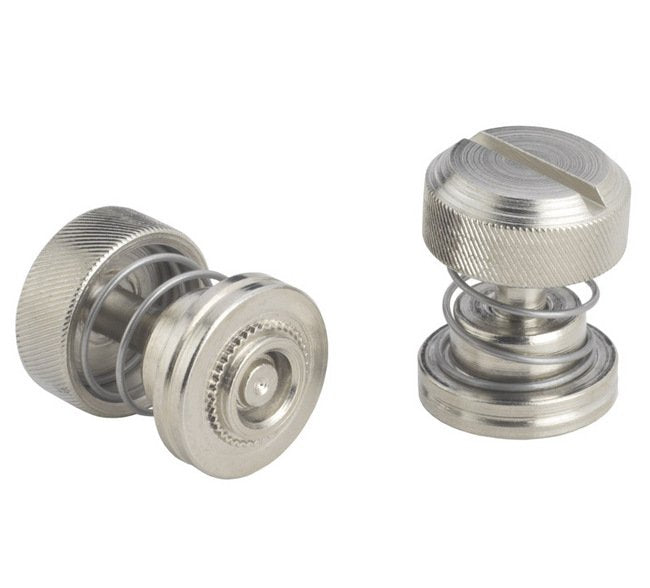

PEM® Captive Panel Screw-Low Profile Knob PF32 - Metric
PEM® Captive Panel Screw-Low Profile Knob PF32 - Metric
SKU:PEM-c8875b
PEM® Captive Panel Screw-Low Profile Knob PF32 for functional & cosmetic needs. M4 x 0.7, ANSI/ASME B1.13M compliant.
Regular price
$15.99
Regular price
Sale price
$15.99
Unit price
per
Initiate Order
PEM® Captive Panel Screw-Low Profile Knob PF32 - Metric
$15.99
Quantity: 1
Claim Your Seller Account
PEM® Captive Panel Screw-Low Profile Knob PF32 - Metric
$15.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The PEM® Captive Panel Screw features a low-profile design that meets both functional and cosmetic requirements. With a convenient large slotted head for easy tool or finger operation, this screw is designed for M4 x 0.7 thread size, with bright nickel finish over copper flash per ASTM B689. Made of high-quality materials including carbon steel and 300 series stainless steel, this screw is suitable for sheets with a minimum thickness of 1.50mm. With compliance to ANSI/ASME B1.13M standards, this screw ensures reliability and durability in various applications.
Product Specifications
Specifications A Shank Max
1.48 mm
Specifications Cad Supplier
PennEngineering® (PEM®)
Specifications Cad View
Unfastened
Specifications C Max
6.38 mm
Specifications E 025
11.89 mm
Specifications Finish Retainer
Bright Nickel over Copper Flash per ASTM B689
Specifications Finish Screw
Bright nickel over copper flash per ASTM B689
Specifications Finish Spring
Natural Finish
Specifications For Use In Sheet Hardness
HRB 60 or Less (Hardness Rockwell âBâ Scale)HB 107 or Less (Hardness Brinell)
Specifications G 04
7.62 mm
Specifications Hole Size In Sheet 008
6.4 mm
Specifications H 013
5.26 mm
Specifications Material Retainer
Carbon Steel
Specifications Material Screw
Carbon Steel
Specifications Material Spring
300 Series Stainless Steel
Specifications Min Dist Hole Cl To Edge
7.37 mm
Specifications Min Sheet Thickness
1.50 mm
Specifications Screw Length Code
30
Specifications T1 Max
8.38 mm
Specifications T2 Nom
15.24 mm
Specifications Thread Code
M4
Specifications Thread Size X Pitch
M4 x 0.7
Specifications Thread Specification
ANSI/ASME B1.13M, 6g
Specifications Type
PF32
