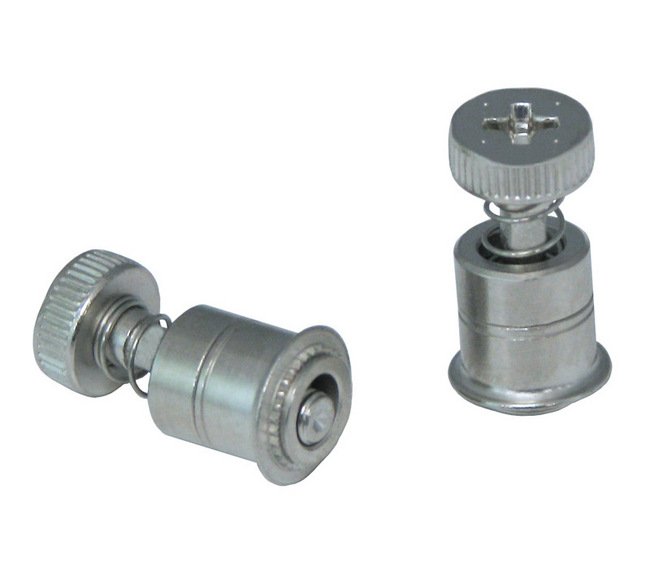

PEM® Captive Panel Screw PF7M
PEM® Captive Panel Screw PF7M
SKU:PEM-ecd240
PEM® captive panel screw with self-clinching design, flush installation, and ASME B1.1, 2A thread specifications for high pushout resistance and durability.
Regular price
$12.99
Regular price
Sale price
$12.99
Unit price
per
Initiate Order
PEM® Captive Panel Screw PF7M
$12.99
Quantity: 1
Claim Your Seller Account
PEM® Captive Panel Screw PF7M
$12.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The PEM® Captive Panel Screw PF7M features a self-clinching design for high pushout resistance and flush installation on the panel's back side. With no special hole preparation required, this screw is reliable and efficient, meeting ASME B1.1, 2A thread specifications. Made of heat-treated carbon steel and 300 series stainless steel, it ensures durability and strength. The bright nickel finish enhances corrosion resistance, suitable for use in sheets with hardness up to HRB 60 or HB 107, meeting industry standards for quality and performance.
Product Specifications

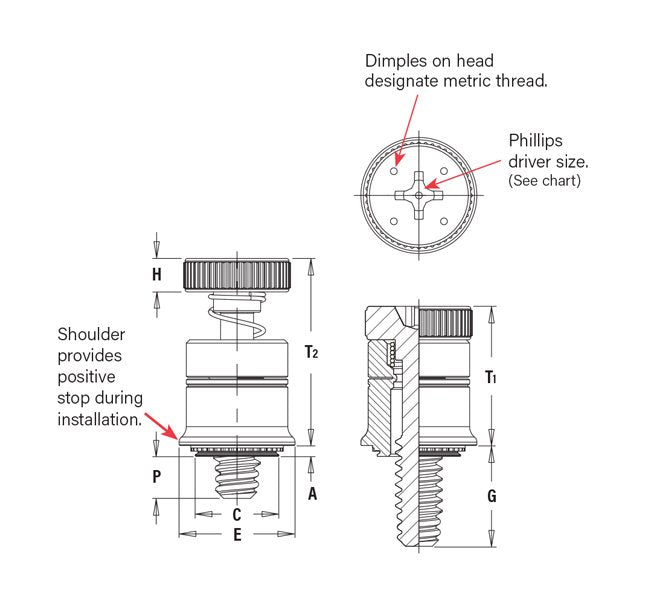

Specifications A Shank Max
.036 in
Specifications Cad Supplier
PennEngineering® (PEM®)
Specifications Cad View
Unfastened
Specifications C Max
.249 in
Specifications E 010
.342 in
Specifications Finish Retainer
Bright nickel over copper flash
Specifications Finish Screw
Bright nickel over copper flash
Specifications Finish Spring
Natural Finish
Specifications For Use In Sheet Hardness
HRB 60 or Less (Hardness Rockwell âBâ Scale) / HB 107 or Less (Hardness Brinell)
Specifications G 025
.300 in
Specifications Hole Size In Sheet 0003 0000
.250 in
Specifications H 010
.100 in
Specifications Material Retainer
Carbon Steel
Specifications Material Screw
Heat-Treated Carbon Steel
Specifications Material Spring
300 Series Stainless Steel
Specifications Min Dist Hole Cl To Edge
.290 in
Specifications Min Sheet Thickness
.036 in
Specifications P 025
.065 in
Specifications Screw Length Code
1
Specifications T1 Nom
.410 in
Specifications T2 Nom
.610 in
Specifications Thread Code
632
Specifications Thread Size
.138-32 (#6;-32)
Specifications Thread Specification
ASME B1.1, 2A
Specifications Type
PF7M
