PEM® Captive Panel Screw Tool - PFC4 Metric
PEM® Captive Panel Screw Tool - PFC4 Metric
SKU:PEM-e0c481
UL-approved PEM® Captive Panel Screw Tool for stainless steel sheets. Secure, tool-only access with versatile screw length options. Meets ANSI standards.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
PEM® Captive Panel Screw Tool - PFC4 Metric
$29.99
Quantity: 1
Claim Your Seller Account
PEM® Captive Panel Screw Tool - PFC4 Metric
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

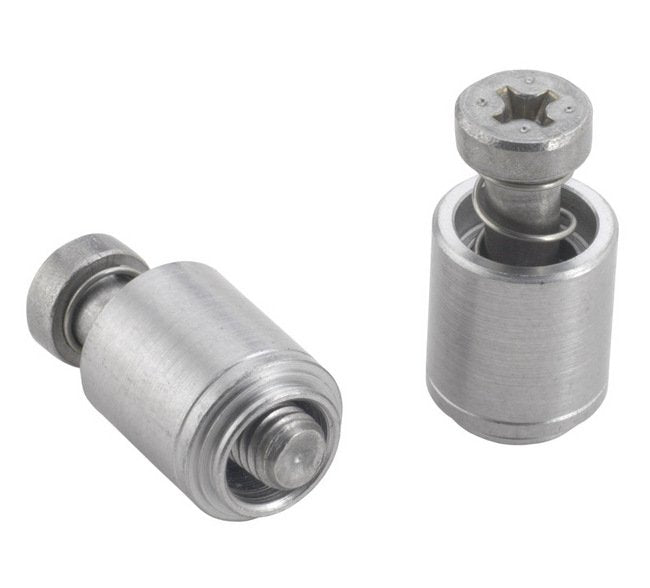

The PEM® Captive Panel Screw Tool is designed for easy and secure installation into stainless steel sheets with a hardness of HRB 88 or less. Featuring a fully concealed-head for tool-only access, this spring-loaded screw ensures UL-approved performance. With assorted screw lengths available, it meets a wide range of applications. The tool boasts precise specifications including M3 x 0.5 thread size, 400 Series Stainless Steel construction, and ANSI/ASME B1.13M thread specification. Ideal for institutional and government procurement needs.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

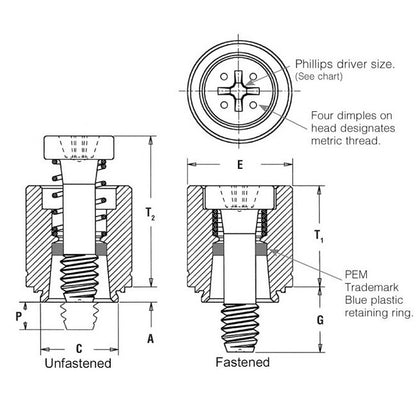

Specifications A Shank Max
1.53 mm
Specifications Cad Supplier
PennEngineering® (PEM®)
Specifications Cad View
Unfastened
Specifications C Max
6.71 mm
Specifications Driver Size
#1 Phillips
Specifications E 025
8.74 mm
Specifications Finish Retainer
Passivated and/or tested per ASTM A380
Specifications Finish Screw
Passivated and/or tested per ASTM A380
Specifications Finish Spring
Natural Finish
Specifications For Use In Sheet Hardness
HRB 88 or Less (Hardness Rockwell âBâ Scale) / HB 183 or Less (Hardness Brinell)
Specifications G 04
6.40 mm
Specifications Hole Size In Sheet 008
6.73 mm
Specifications Material Retainer
400 Series Stainless Steel
Specifications Material Screw
400 Series Stainless Steel
Specifications Material Spring
300 Series Stainless Steel
Specifications Min Dist Hole Cl To Edge
6.35 mm
Specifications Min Sheet Thickness
1.53 mm
Specifications P 064
0 mm
Specifications Screw Length Code
40
Specifications T1 Max
9.40 mm
Specifications T2 Nom
13.72 mm
Specifications Thread Code
M3
Specifications Thread Size X Pitch
M3 x 0.5
Specifications Thread Specification
ANSI/ASME B1.13M, 6g
Specifications Type
PFC4
