PEM® Captive Panel Screw-Tool PFC4, Metric
PEM® Captive Panel Screw-Tool PFC4, Metric
SKU:PEM-8d09ce
UL-approved PEM® Captive Panel Screw-Tool for secure and easy installation on metal sheets. ANSI/ASME B1.13M compliant.
Regular price
$14.99
Regular price
Sale price
$14.99
Unit price
per
Initiate Order
PEM® Captive Panel Screw-Tool PFC4, Metric
$14.99
Quantity: 1
Claim Your Seller Account
PEM® Captive Panel Screw-Tool PFC4, Metric
$14.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

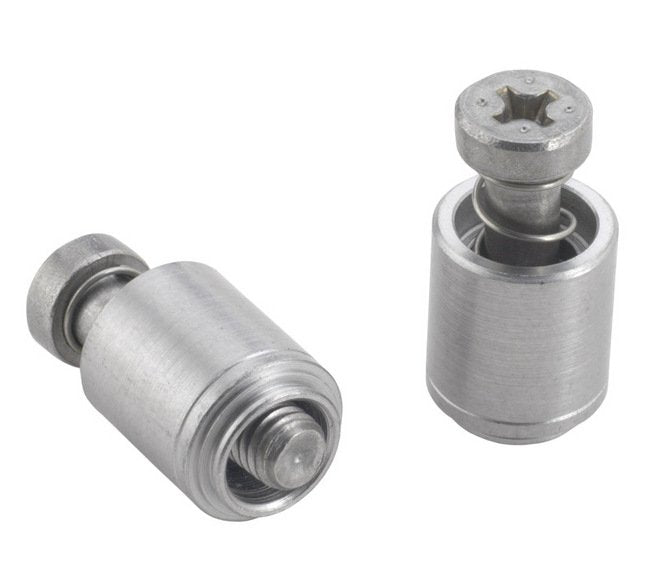

The PEM® Captive Panel Screw-Tool PFC4 is designed for easy installation into stainless steel sheets with a hardness of HRB 88 or less. Featuring a fully concealed head for tool-only access, this UL-approved screw offers maximum security. With assorted screw lengths available, it ensures versatility across applications. Crafted from premium 400 Series Stainless Steel, it meets rigorous ASTM A380 standards for finishes, guaranteeing long-lasting performance. Compliant with ANSI/ASME B1.13M thread specifications, this tool is an ideal choice for metal sheet and panel fastening needs.
Product Specifications

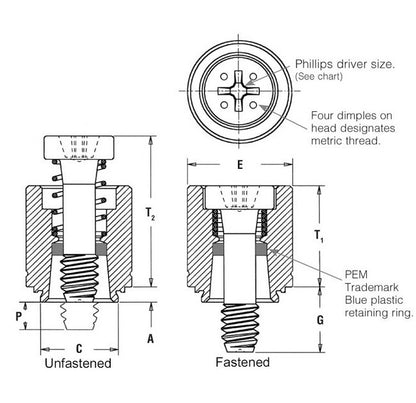

Specifications A Shank Max
1.53 mm
Specifications Cad Supplier
PennEngineering® (PEM®)
Specifications Cad View
Unfastened
Specifications C Max
8.72 mm
Specifications Driver Size
#2 Phillips
Specifications E 025
11.1 mm
Specifications Finish Retainer
Passivated and/or tested per ASTM A380
Specifications Finish Screw
Passivated and/or tested per ASTM A380
Specifications Finish Spring
Natural Finish
Specifications For Use In Sheet Hardness
HRB 88 or Less (Hardness Rockwell âBâ Scale) / HB 183 or Less (Hardness Brinell)
Specifications G 04
14.30 mm
Specifications Hole Size In Sheet 008
8.74 mm
Specifications Material Retainer
400 Series Stainless Steel
Specifications Material Screw
400 Series Stainless Steel
Specifications Material Spring
300 Series Stainless Steel
Specifications Min Dist Hole Cl To Edge
8.63 mm
Specifications Min Sheet Thickness
1.53 mm
Specifications P 064
6.40 mm
Specifications Screw Length Code
94
Specifications T1 Max
12.45 mm
Specifications T2 Nom
17.91 mm
Specifications Thread Code
M5
Specifications Thread Size X Pitch
M5 x 0.8
Specifications Thread Specification
ANSI/ASME B1.13M, 6g
Specifications Type
PFC4
