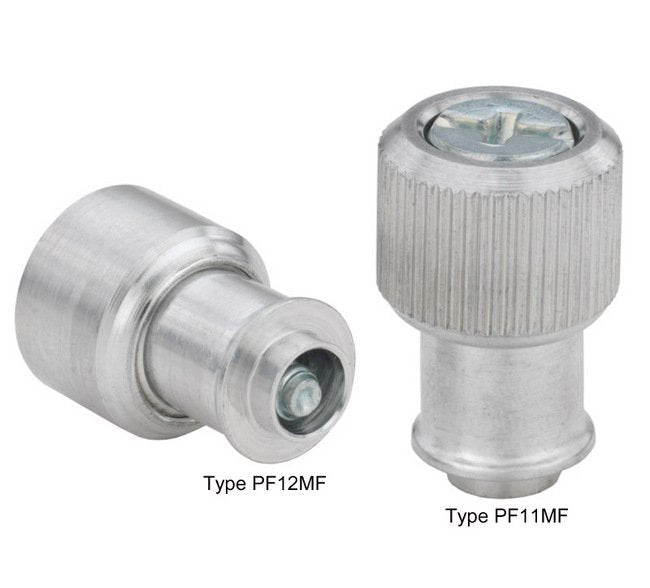

The PEM® Large Knob, Spring-loaded Types PF11MF and PF12MF, Unified thread size .138-32 (#6-32), offers easy installation with low force requirements, suitable for various panel thicknesses. Constructed with durable materials like heat-treated carbon steel and aluminum, ensuring longevity and strength. Compliant with ANSI B1.1, 2A thread specifications and finishes including zinc plating for corrosion resistance.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

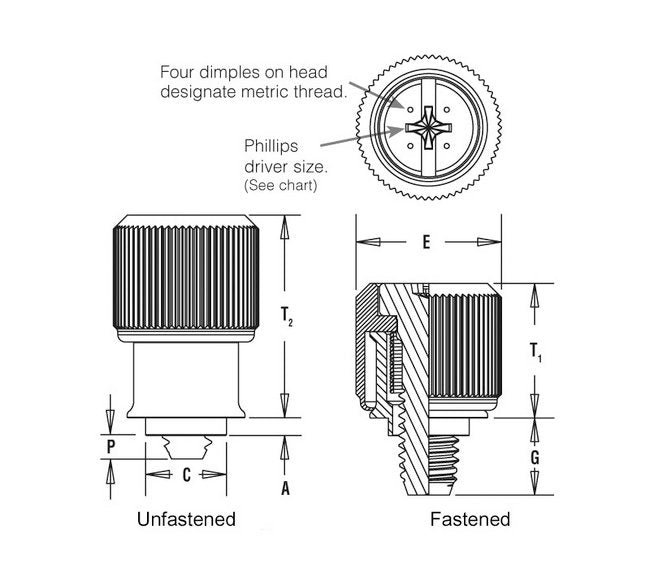

Specifications A Max
.072 in
Specifications Cad Supplier
PennEngineering® (PEM®)
Specifications Cad View
Unfastened
Specifications C Max
.212 in
Specifications Driver Size
Slotted/#2; Phillips
Specifications E 010
.450 in
Specifications Finish Knob
Natural Finish
Specifications Finish Retainer
Natural finish
Specifications Finish Screw
Zinc plated per ASTM B633, SC1 (5µm), Type III, colorless
Specifications Finish Spring
Natural Finish
Specifications G 025
.350 in
Specifications Hole Size In Sheet 0005 0000
.213 in
Specifications Material Knob
Aluminum
Specifications Material Retainer
Aluminum
Specifications Material Screw
Heat-Treated Carbon Steel
Specifications Material Spring
300 Series Stainless Steel
Specifications Min Sheet Thickness
.060 in
Specifications P 025
.084 in
Specifications Screw Length Code
2
Specifications T1 Nom
.450 in
Specifications T2 Nom
.640 in
Specifications Thread Code
632
Specifications Thread Size
.138-32 (#6;-32)
Specifications Thread Specification
ANSI B1.1, 2A
Specifications Type
Knurled Cap - PF11MF
