PEM® Spring-loaded Screw - Types PFC2, PFS2
PEM® Spring-loaded Screw - Types PFC2, PFS2
SKU:PEM-9eb486
Enhance operator access with the PEM® Spring-loaded Screw - Types PFC2, PFS2. Tool or finger operation, ANSI B1.1 compliance.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
PEM® Spring-loaded Screw - Types PFC2, PFS2
$24.99
Quantity: 1
Claim Your Seller Account
PEM® Spring-loaded Screw - Types PFC2, PFS2
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

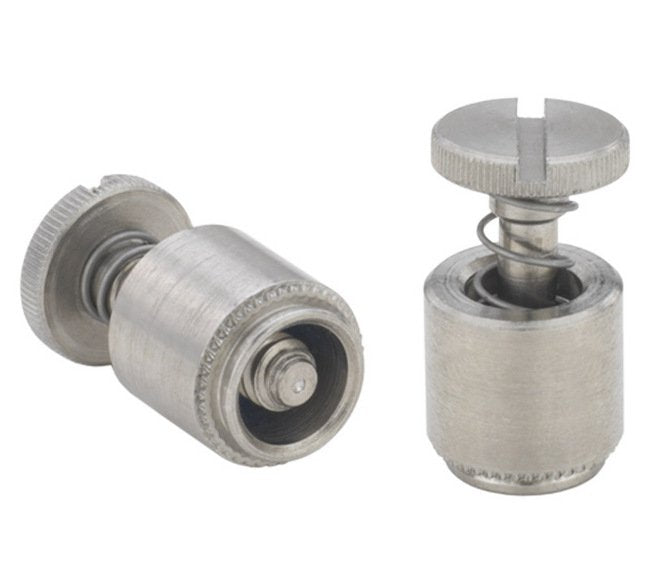

The PEM® Spring-loaded Screw - Types PFC2, PFS2 is designed for ease of operator access and functionality, meeting UL 508 standards. Available in steel or stainless steel, this screw offers tool or finger operation with various screw lengths to accommodate different needs. With specifications conforming to ANSI B1.1, 2A standards, and materials including 300 Series Stainless Steel, this screw ensures durability and reliability in various applications.
Product Specifications

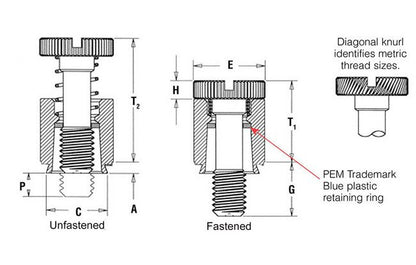

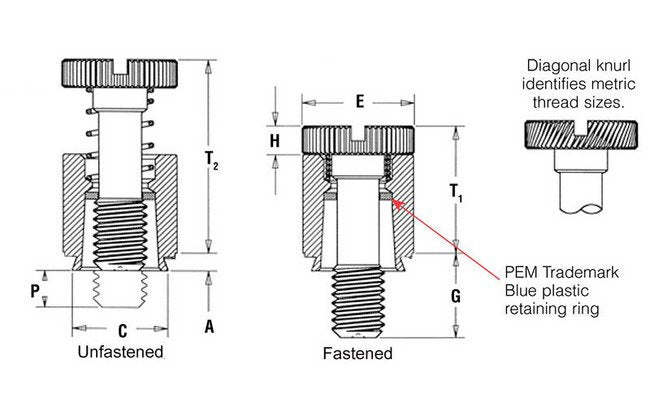

Specifications A Shank Max
.060 in
Specifications Cad Supplier
PennEngineering® (PEM®)
Specifications Cad View
Unfastened
Specifications C Max
.412 in
Specifications E 010
.468 in
Specifications Finish Retainer
Passivated and/or tested per ASTM A380
Specifications Finish Screw
Passivated and/or tested per ASTM A380
Specifications Finish Spring
Natural Finish
Specifications For Use In Sheet Hardness
HRB 70 or Less (Hardness Rockwell âBâ Scale) / HB 125 or Less (Hardness Brinell)
Specifications G 016
.375 in
Specifications Hole Size In Sheet 0003 0000
.413 in
Specifications H 005
.097 in
Specifications Material Retainer
300 Series Stainless Steel
Specifications Material Screw
300 Series Stainless Steel
Specifications Material Spring
300 Series Stainless Steel
Specifications Min Dist Hole Cl To Edge
.38 in
Specifications Min Sheet Thickness
.060 in
Specifications Optional Finish
Retainer â BN â Black NitrideScrew â BN â Black nitride
Specifications P 025
.000 in
Specifications Screw Length Code
60
Specifications T1 Max
.580 in
Specifications T2 Nom
.880 in
Specifications Thread Code
0420
Specifications Thread Size
.250-20 (1/4-20)
Specifications Thread Specification
ANSI B1.1, 2A
Specifications Type
PFC2
