PEM® Captive Panel Screw Tool - Spinning Clinch Bolt SCBJ
PEM® Captive Panel Screw Tool - Spinning Clinch Bolt SCBJ
SKU:PEM-383d22
Enhance metal sheet fastening with the premium PEM® Captive Panel Screw Tool. Durable, zinc-plated, and ANSI/ASME compliant for secure applications.
Regular price
$8.99
Regular price
Sale price
$8.99
Unit price
per
Initiate Order
PEM® Captive Panel Screw Tool - Spinning Clinch Bolt SCBJ
$8.99
Quantity: 1
Claim Your Seller Account
PEM® Captive Panel Screw Tool - Spinning Clinch Bolt SCBJ
$8.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

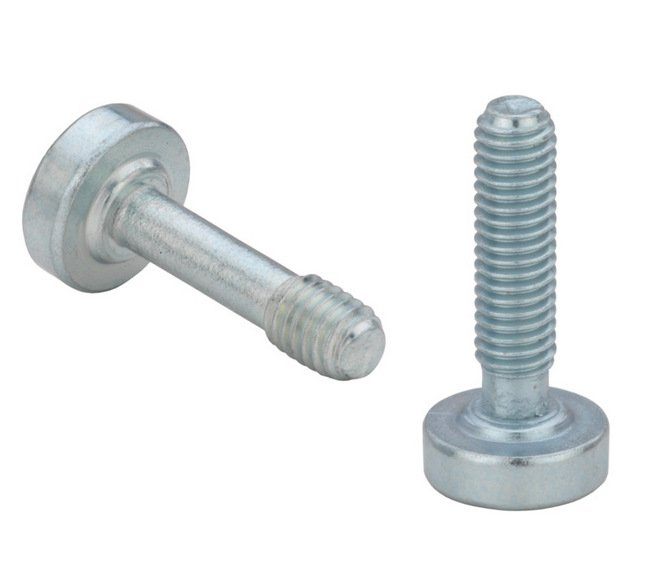

The PEM® Captive Panel Screw Tool, featuring a Spinning Clinch Bolt design without a spring, offers reliable fastening solutions for metal sheets. With specifications meeting ANSI/ASME standards, this heat-treated carbon steel screw guarantees durability and corrosion resistance. Designed for compatibility with #2 Phillips drivers, it ensures secure fastening in metal sheets with a thickness of 1.02mm or more. Trust PennEngineering® for premium quality fasteners that meet industry standards and provide exceptional performance.

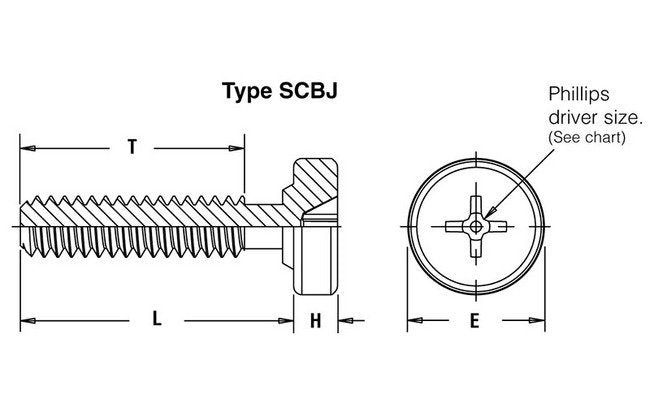

Product Specifications
Specifications Cad Supplier
PennEngineering® (PEM®)
Specifications Driver Size
#2 Phillips
Specifications E 025
8.28 mm
Specifications Finish
Zinc plated per ASTM B633, SC1 (5µm), Type III, colorless
Specifications Finish Spring
Natural Finish
Specifications For Use In Sheet Hardness
HRB 80 or Less (Hardness Rockwell âBâ Scale) / HB 150 or Less (Hardness Brinell)
Specifications Hole Size In Sheet 008
4 mm
Specifications H Nom
2.03 mm
Specifications L Length 04
10 mm
Specifications Material
Heat-Treated Carbon Steel
Specifications Min Dist Hole Cl To Edge
5.00 mm
Specifications Min Sheet Thickness
1.02 mm
Specifications Screw Length Code
10
Specifications Thread Code
M4
Specifications Thread Size X Pitch
M4 x 0.7
Specifications Thread Specification
ANSI/ASME B1.13M, 6g
Specifications Type
Jacking - SCBJ
Specifications T Nom
7.70 mm
