PEM Captive Panel Screw Head - PFHV Metric
PEM Captive Panel Screw Head - PFHV Metric
SKU:PEM-44740e
Enhance efficiency with the PEM Captive Panel Screw-Screw Head, No Spring, featuring a low-cost design, compact profile, and ANSI/ASME B1.13M compliance.
Regular price
$8.99
Regular price
Sale price
$8.99
Unit price
per
Initiate Order
PEM Captive Panel Screw Head - PFHV Metric
$8.99
Quantity: 1
Claim Your Seller Account
PEM Captive Panel Screw Head - PFHV Metric
$8.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

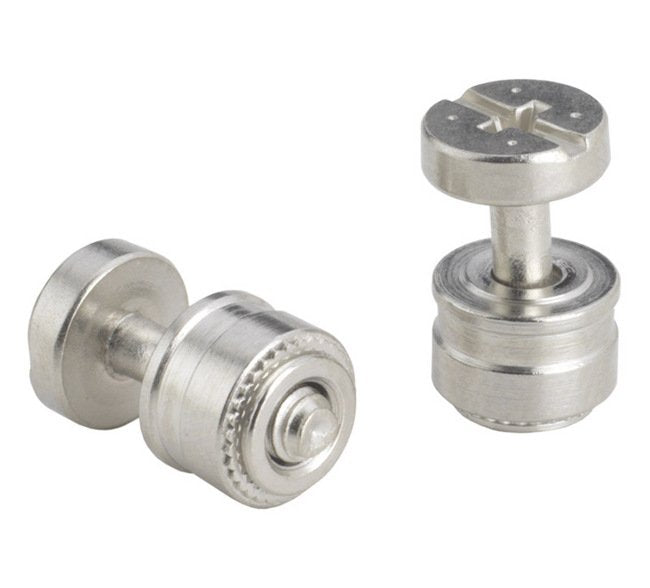

Upgrade your assembly efficiency with the PEM Captive Panel Screw-Screw Head, No Spring - PFHV in Metric size. Designed for limited access areas, this screw features a low-cost, compact, and universal slot/Phillips recess standard. With a bright nickel finish over copper flash, it ensures durability and corrosion resistance. It complies with ANSI/ASME B1.13M thread specifications, making it ideal for metal sheets with hardness up to HRB 60 or HB 107. The heat-treated carbon steel construction guarantees reliable performance in various applications.
Product Specifications

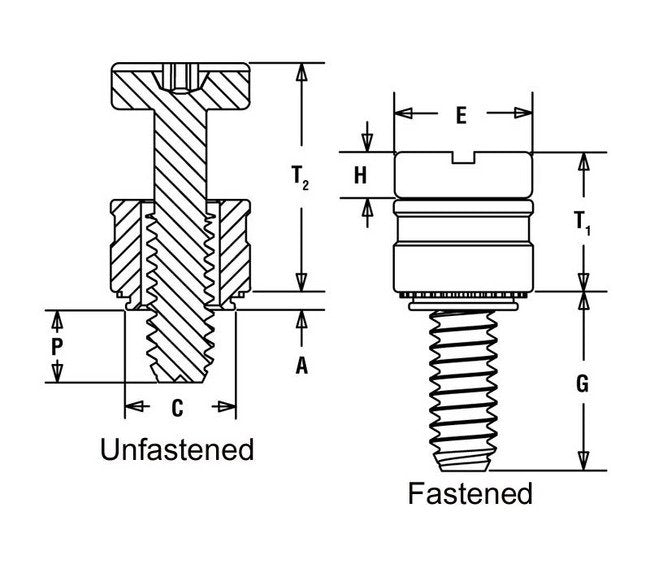

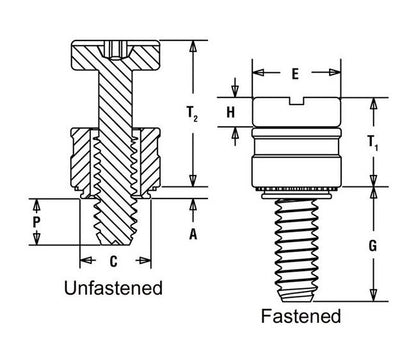

Specifications A Shank Max
0.92 mm
Specifications Cad Supplier
PennEngineering® (PEM®)
Specifications Cad View
Unfastened
Specifications C Max
5.98 mm
Specifications Driver Size
Slotted/#2; Phillips
Specifications E 025
7.45 mm
Specifications Finish Retainer
Bright Nickel over Copper Flash per ASTM B689
Specifications Finish Screw
Bright nickel over copper flash per ASTM B689
Specifications For Use In Sheet Hardness
HRB 60 or Less (Hardness Rockwell âBâ Scale)HB 107 or Less (Hardness Brinell)
Specifications G 064
8.42 mm
Specifications Hole Size In Sheet 008
6 mm
Specifications H 013
2.34 mm
Specifications Material Retainer
Carbon Steel
Specifications Material Screw
Heat-Treated Carbon Steel
Specifications Min Dist Hole Cl To Edge
6.30 mm
Specifications Min Sheet Thickness
0.92 mm
Specifications P 064
2.30 mm
Specifications Screw Length Code
1
Specifications T1 Nom
7.45 mm
Specifications T2 Nom
12.47 mm
Specifications Thread Code
M3.5
Specifications Thread Size X Pitch
M3.5 x 0.6
Specifications Thread Specification
ANSI/ASME B1.13M, 6g
Specifications Type
PFHV
