Cost-efficient, compact captive panel screw with universal slot/Phillips recess. ANSI/ASME standard compliant, heat-treated carbon steel construction with bright nickel finish.

$12.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

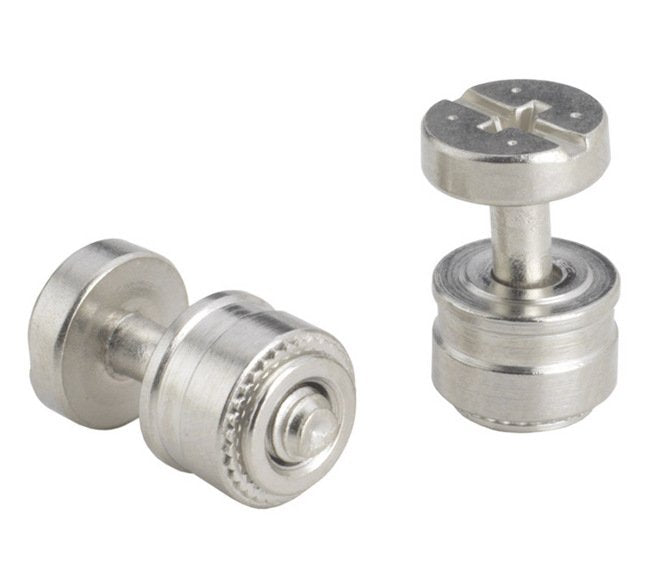

The PEM Captive Panel Screw-Screw Head, No Spring - PFHV Metric offers a cost-effective, compact design perfect for limited access areas. Featuring universal slot/Phillips recess compatibility, this screw is versatile and easy to use. With specifications meeting ANSI/ASME standards, this screw is constructed from heat-treated carbon steel for durability and reliability. The bright nickel finish ensures corrosion resistance, making it suitable for various applications in metal sheets and panels. Trust PennEngineering® for quality fasteners.

Product Specifications

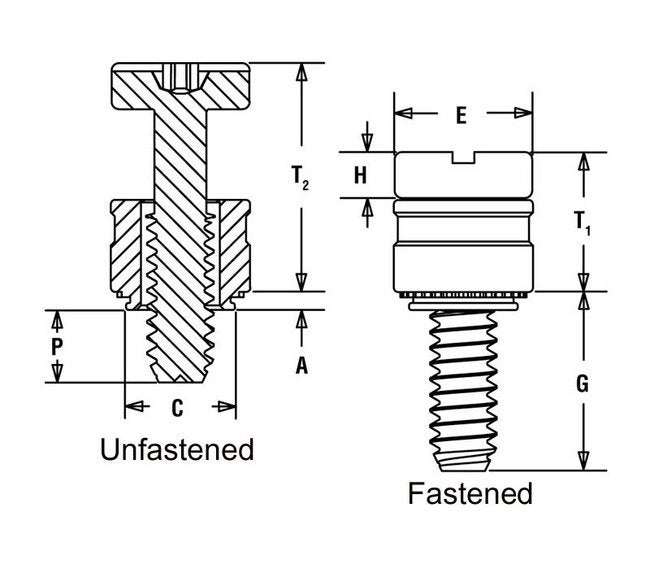

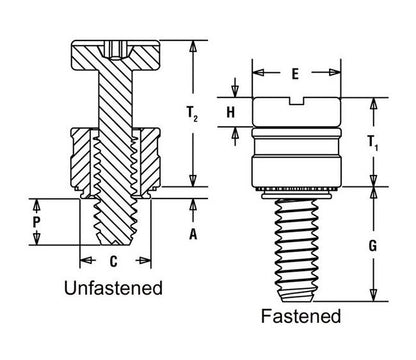

Specifications A Shank Max

0.92 mm

Specifications Cad Supplier

PennEngineeringÂ® (PEMÂ®)

Specifications Cad View

Unfastened

Specifications C Max

5.49 mm

Specifications Driver Size

Slotted/#1; Phillips

Specifications E 025

6.95 mm

Specifications Finish Retainer

Bright Nickel over Copper Flash per ASTM B689

Specifications Finish Screw

Bright nickel over copper flash per ASTM B689

Specifications For Use In Sheet Hardness

HRB 60 or Less (Hardness Rockwell âBâ Scale)HB 107 or Less (Hardness Brinell)

Specifications G 064

7.56 mm

Specifications Hole Size In Sheet 008

5.5 mm

Specifications H 013

2.03 mm

Specifications Material Retainer

Carbon Steel

Specifications Material Screw

Heat-Treated Carbon Steel

Specifications Min Dist Hole Cl To Edge

5.8 mm

Specifications Min Sheet Thickness

0.92 mm

Specifications P 064

1.90 mm

Specifications Screw Length Code

Specifications T1 Nom

6.69 mm

Specifications T2 Nom

11.25 mm

Specifications Thread Code

Specifications Thread Size X Pitch

M3 x 0.5

Specifications Thread Specification

ANSI/ASME B1.13M, 6g

Specifications Type

PFHV
