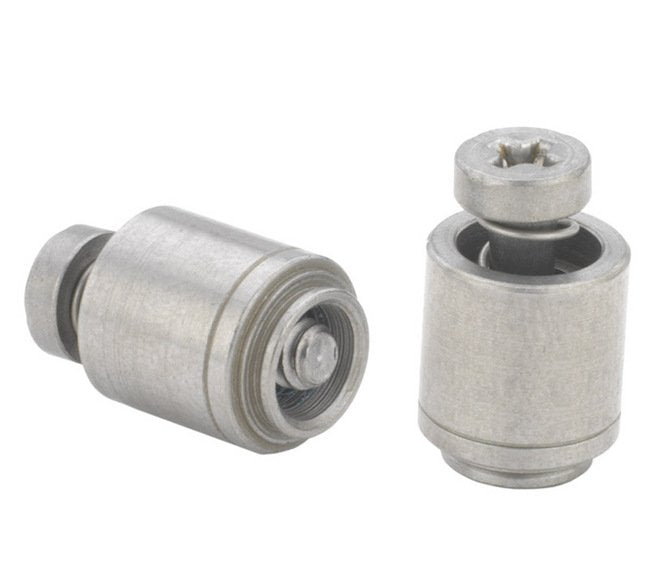

PEM Captive Panel Screw Installation Tool - PFC4, Non-Flush, Spring-loaded
PEM Captive Panel Screw Installation Tool - PFC4, Non-Flush, Spring-loaded
SKU:PEM-22f594
PEM Captive Panel Screw Installation Tool - Perfect for Quick, Tool-only Access to Fasten Metal Sheets Securely in Various Applications
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
PEM Captive Panel Screw Installation Tool - PFC4, Non-Flush, Spring-loaded
$29.99
Quantity: 1
Claim Your Seller Account
PEM Captive Panel Screw Installation Tool - PFC4, Non-Flush, Spring-loaded
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The PEM Captive Panel Screw Installation Tool is designed for use with stainless steel sheets HRB 88 or less, providing a fully concealed-head for tool-only access. This UL-approved tool features a .138-32 (#6-32) thread size and a driver size of #2 Phillips. With precise specifications meeting ANSI B1.1 standards, including materials like 400 Series Stainless Steel and 300 Series Stainless Steel for the screw and spring respectively, it ensures durability and reliability in various applications. The tool is ideal for quick and secure installations in metal sheets with a thickness of .060 in or more, making it a trusted choice for professionals across industries.
Ready to Grow Without Cash Flow Constraints?

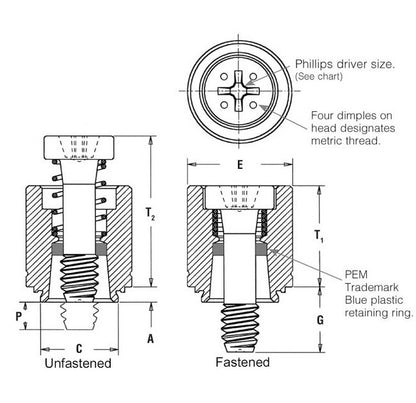

Product Specifications
Specifications A Shank Max
.060 in
Specifications Cad Supplier
PennEngineering® (PEM®)
Specifications Cad View
Unfastened
Specifications C Max
.280 in
Specifications Driver Size
#2 Phillips
Specifications E 010
.375 in
Specifications Finish Retainer
Passivated and/or tested per ASTM A380
Specifications Finish Screw
Passivated and/or tested per ASTM A380
Specifications Finish Spring
Natural Finish
Specifications For Use In Sheet Hardness
HRB 88 or Less (Hardness Rockwell âBâ Scale) / HB 183 or Less (Hardness Brinell)
Specifications G 016
.375 in
Specifications Hole Size In Sheet 0003 0000
.281 in
Specifications Material Retainer
400 Series Stainless Steel
Specifications Material Screw
400 Series Stainless Steel
Specifications Material Spring
300 Series Stainless Steel
Specifications Min Dist Hole Cl To Edge
.28 in
Specifications Min Sheet Thickness
.060 in
Specifications P 025
.125 in
Specifications Screw Length Code
62
Specifications T1 Max
.38 in
Specifications T2 Nom
.540 in
Specifications Thread Code
632
Specifications Thread Size
.138-32 (#6;-32)
Specifications Thread Specification
ANSI B1.1, 2A
Specifications Type
PFC4
