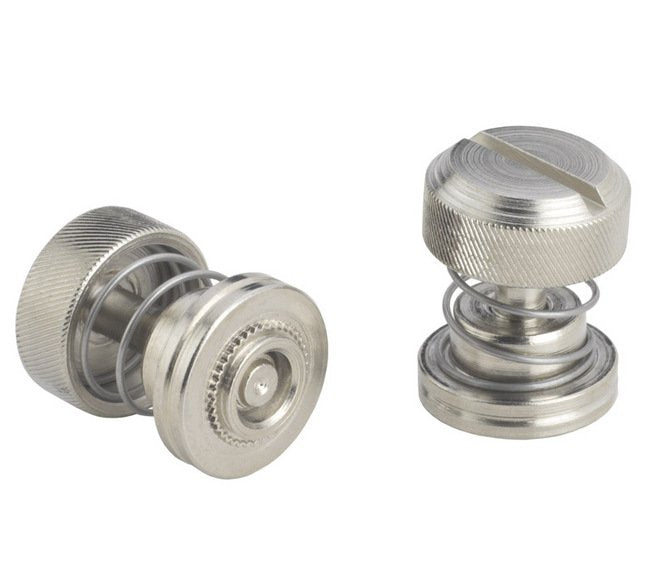

PEM Captive Panel Screw-Low Profile Knob Metric PF32
PEM Captive Panel Screw-Low Profile Knob Metric PF32
SKU:PEM-fd6147
Meet your M5 x 0.8 thread needs with the durable and user-friendly PEM Captive Panel Screw-Low Profile Knob in Metric PF32 type.
Regular price
$9.99
Regular price
Sale price
$9.99
Unit price
per
Initiate Order
PEM Captive Panel Screw-Low Profile Knob Metric PF32
$9.99
Quantity: 1
Claim Your Seller Account
PEM Captive Panel Screw-Low Profile Knob Metric PF32
$9.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The PEM Captive Panel Screw with Low Profile Knob in Metric PF32 type is designed to meet a variety of functional and aesthetic needs. Featuring a low-profile design with a convenient large slotted head for easy tool or finger operation, this screw is perfect for applications requiring M5 x 0.8 thread size. With materials like carbon steel and 300 series stainless steel, it ensures durability and reliability. The bright nickel finish adds corrosion resistance, making it ideal for use in metal sheets with a thickness of 1.50 mm or more.
Product Specifications
Specifications A Shank Max
1.48 mm
Specifications Cad Supplier
PennEngineering® (PEM®)
Specifications Cad View
Unfastened
Specifications C Max
7.98 mm
Specifications E 025
13.46 mm
Specifications Finish Retainer
Bright Nickel over Copper Flash per ASTM B689
Specifications Finish Screw
Bright nickel over copper flash per ASTM B689
Specifications Finish Spring
Natural Finish
Specifications For Use In Sheet Hardness
HRB 60 or Less (Hardness Rockwell âBâ Scale)HB 107 or Less (Hardness Brinell)
Specifications G 04
7.62 mm
Specifications Hole Size In Sheet 008
8 mm
Specifications H 013
5.59 mm
Specifications Material Retainer
Carbon Steel
Specifications Material Screw
Carbon Steel
Specifications Material Spring
300 Series Stainless Steel
Specifications Min Dist Hole Cl To Edge
8.38 mm
Specifications Min Sheet Thickness
1.50 mm
Specifications Screw Length Code
30
Specifications T1 Max
8.51 mm
Specifications T2 Nom
15.37 mm
Specifications Thread Code
M5
Specifications Thread Size X Pitch
M5 x 0.8
Specifications Thread Specification
ANSI/ASME B1.13M, 6g
Specifications Type
PF32
